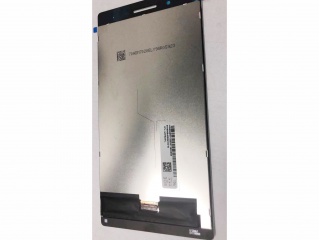

| PartZenbakia | TV070HDM-TL0-39P0 |
| Marka | BOE |
| Tamaina | 7.0 |
| Aplikazio | Pad & Tablet |
| Ebazpena | 720×1280 |
| Konposizioa | a-Si TFT-LCD, Assemb |
| Distira | |
| CR | 900:1 |
| Koloreak | 16.7M |
| Atzeko argia | 6S3P |
| Interfazea | MIPI |
| panel marka | BOE |
| panel eredua | TV070HDM-TL0-39P0 |
| panelaren tamaina | 7.0" |
| panel mota | a-Si TFT-LCD, Assembly |
| ebazpena | 720(RGB)×1280, WXGA, 209PPI |
| pixel formatua | RGB Vertical Stripe |
| bistaratzeko eremua | 87.2654(W)×155.136(H) mm |
| bezela irekidura | - |
| eskema tamaina | 93.08(W)×183.38(H) mm |
| azalera | Hard coating |
| distira | 350 cd/m² (Typ.) |
| kontraste-erlazioa | 900:1 (Typ.) (TM) |
| ikuspegi angelua | 80/80/80/80 (Typ.)(CR≥10) |
| bistaratzeko modua | - |
| ikuspegirik onena | Symmetry |
| erantzun denbora | 30 (Typ.)(Tr+Td) |
| bistaratzeko koloreak | 16.7M 55% NTSC |
| lanpara mota | 6S3P WLED , Without Driver |
| maiztasuna | 60Hz |
| pantaila taktila | On-Cell Touch |
| panelaren pisua | 130g (Max.) |
| aplikazio | Pad & Tablet |
| seinale interfazea | MIPI (4 data lanes) , 39 pins Connector |
| sarrerako tentsioa | 1.8/5.0/-5.0V (Typ.)(VDDI/VSP/VSN) |
| ingurunea | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
