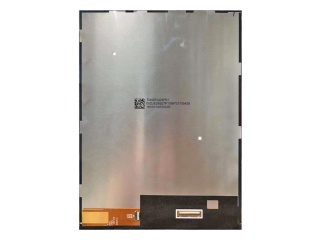

| PartZenbakia | TM097QDSP01 |
| Marka | TIANMA |
| Tamaina | 9.7 |
| Aplikazio | Pad & Tablet |
| Ebazpena | 1536×2048 |
| Konposizioa | LCM , a-Si TFT-LCD |
| Distira | |
| CR | 1000:1 |
| Koloreak | 16.7M |
| Atzeko argia | 6S6P |
| Interfazea | MIPI |
| fabrikatzailea | TIANMA |
| ereduaren izena | TM097QDSP01 |
| pantailaren tamaina | 9.7 inch |
| pantaila mota | LCM , a-Si TFT-LCD |
| pixel-zenbakia | 1536(RGB)×2048 (QXGA) 264PPI |
| antolamendua | RGB Vertical Stripe |
| eremu aktiboa (mm) | 147.456 × 196.608 (H×V) |
| eskema (mm) | 154.016 × 207.83 × 3.75 (H×V×D) |
| bezela eremua (mm) | - |
| tratamendua | Hard coating |
| luminantzia | 460 cd/m² (Typ.) |
| kontraste-erlazioa | 1000 : 1 (Typ.) (TM) |
| ikuspegi angelua | 89/89/89/89 (Typ.)(CR≥10) |
| erantzuna | 25 (Typ.)(Tr+Td) ms |
| ikuspegi ona | Symmetry |
| lan egiteko modua | SFT, Normally Black, Transmissive |
| kolore-sakonera | 16.7M 72% NTSC |
| atzeko argia | 6S6P WLED , No Driver |
| masa | 110g (Typ.) |
| erabiltzen | Pad & Tablet |
| freskatze tasa | 60Hz |
| pantaila taktila | Without |
| seinale mota | MIPI (2 ch, 4 data lanes) , 61 pins Connector |
| tentsio-hornidura | 1.8/5.0/-5.0V (Typ.)(VDDI/AVDD/AVEE) |
| gehienez. balorazioak | Storage Temp.: -30 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
| BF097XN | Innolux | 9.7 | 1024×768 |
| LP097QX1-SPA1 | LG Display | 9.7 | 2048×1536 |
| LP097QX1-SPAV | LG Display | 9.7 | 2048×1536 |
| LP097QX2-SPAV | LG Display | 9.7 | 1536×2048 |
| LP097QX3-SPAV | LG Display | 9.7 | 1536×2048 |
| LP097X02-SLQ1 | LG Display | 9.7 | 1024×768 |
| LQ097L1JY01A | SHARP | 9.7 | 2048×1536 |
| LTN097XL01-A01 | Samsung | 9.7 | 1024×768 |
| TM097TDH01 | Tianma | 9.7 | 1024×768 |
| TM097TDH02 | Tianma | 9.7 | 1024×768 |
