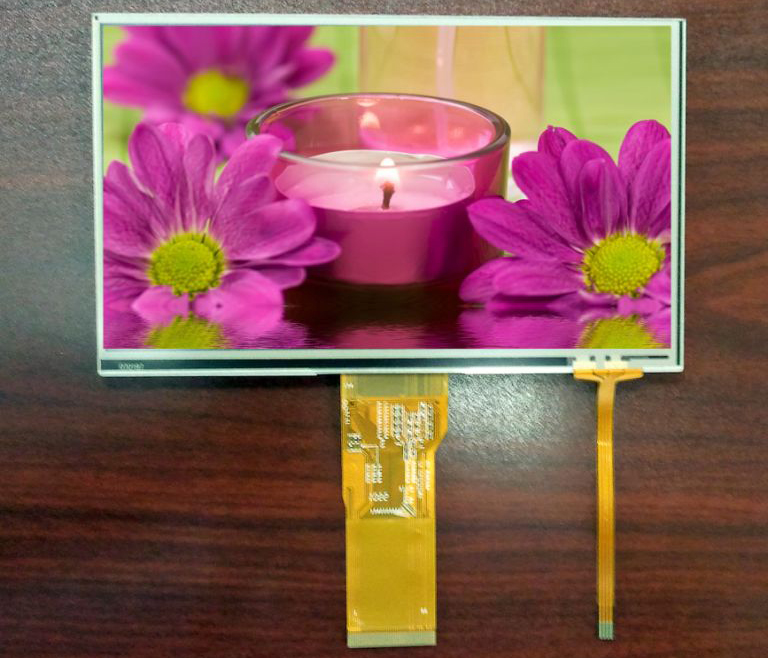

| PartZenbakia | TM070RBH10-00 |
| Marka | TIANMA |
| Tamaina | 7.0 |
| Aplikazio | Industrial Digital P |
| Ebazpena | 800×480 |
| Konposizioa | LCM , a-Si TFT-LCD |
| Distira | |
| CR | 500:1 |
| Koloreak | 262K/16.2M |
| Atzeko argia | 3S8P |
| Interfazea | Parallel |
| fabrikatzailea | TIANMA |
| ereduaren izena | TM070RBH10-00 0 Compatible |
| pantailaren tamaina | 7.0 inch |
| pantaila mota | LCM , a-Si TFT-LCD |
| pixel-zenbakia | 800(RGB)×480 (WVGA) 134PPI |
| antolamendua | RGB Vertical Stripe |
| eremu aktiboa (mm) | 154.08 × 85.92 (H×V) |
| eskema (mm) | 164.9 × 100 × 7.1 (H×V×D) |
| bezela eremua (mm) | - |
| tratamendua | Antiglare |
| luminantzia | 280 cd/m² (Typ.) |
| kontraste-erlazioa | 500 : 1 (Typ.) (TM) |
| ikuspegi angelua | 70/70/50/70 (Typ.)(CR≥10) |
| erantzuna | 25 (Typ.)(Tr+Td) ms |
| ikuspegi ona | 12 o'clock |
| lan egiteko modua | TN, Normally White, Transmissive |
| kolore-sakonera | 262K/16.2M 49% NTSC |
| atzeko argia | 3S8P WLED , 20K hours , No Driver |
| masa | TBD |
| erabiltzen | Industrial Digital Photo Frame Portable DVD Player MP3 PMP |
| freskatze tasa | 60Hz |
| pantaila taktila | 4-wire Resistive Touch |
| seinale mota | Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC |
| tentsio-hornidura | 3.3/10.4/16/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| gehienez. balorazioak | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
