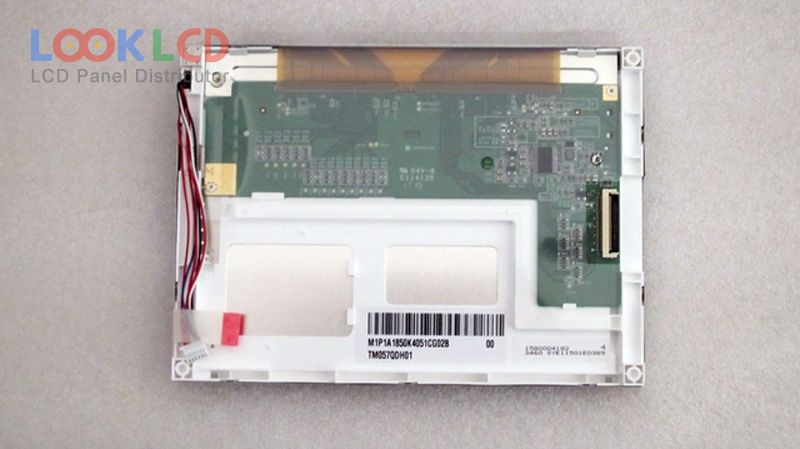

| PartZenbakia | TM057QDH01 |
| Marka | Tianma |
| Tamaina | 5.7 |
| Aplikazio | IA |
| Ebazpena | 640×480 |
| Konposizioa | LCM |
| Distira | 400 |
| CR | 500:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | TIANMA |
| panel eredua | TM057QDH01 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 5.7 inch |
| ebazpena | 640(RGB)×480 , VGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 115.2×86.4 mm |
| eskema | 144×104.6×12.8 mm |
| azalera | Antiglare, Hard coating (3H) |
| distira | 400 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193150% |
| erantzun denbora | 20 (Typ.)(Tr+Td) |
| ikuspegi angelua | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 7S3PWLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 6-bit), 33 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | IA |
