| PartZenbakia | LB104S04-TL01 |
| Marka | LG Display |
| Tamaina | 10.4 |
| Aplikazio | IA |
| Ebazpena | 800×600 |
| Konposizioa | LCM |
| Distira | 250 |
| CR | 500:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | LG Display |

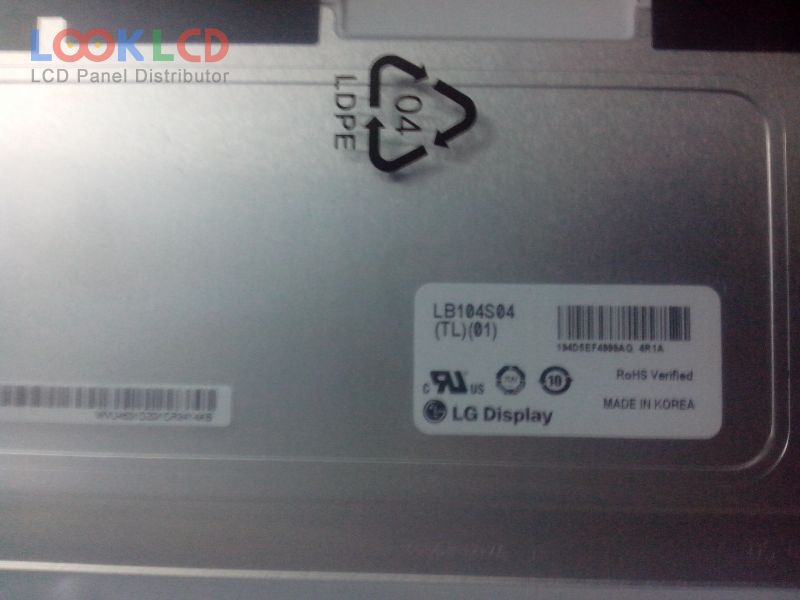

| panel eredua | LB104S04-TL01 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.4 inch |
| ebazpena | 800(RGB)×600 , SVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 211.2×158.4 mm |
| eskema | 224.5×172×7.1 mm |
| azalera | Antiglare, Hard coating (3H) |
| distira | 250 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193145% |
| erantzun denbora | 4/6 (Typ.)(Tr/Td) |
| ikuspegi angelua | 70/70/65/55 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | WLEDEmbedded (LED Driver) |
| seinale interfazea | LVDS (1 ch, 6-bit), 30 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | IA |
