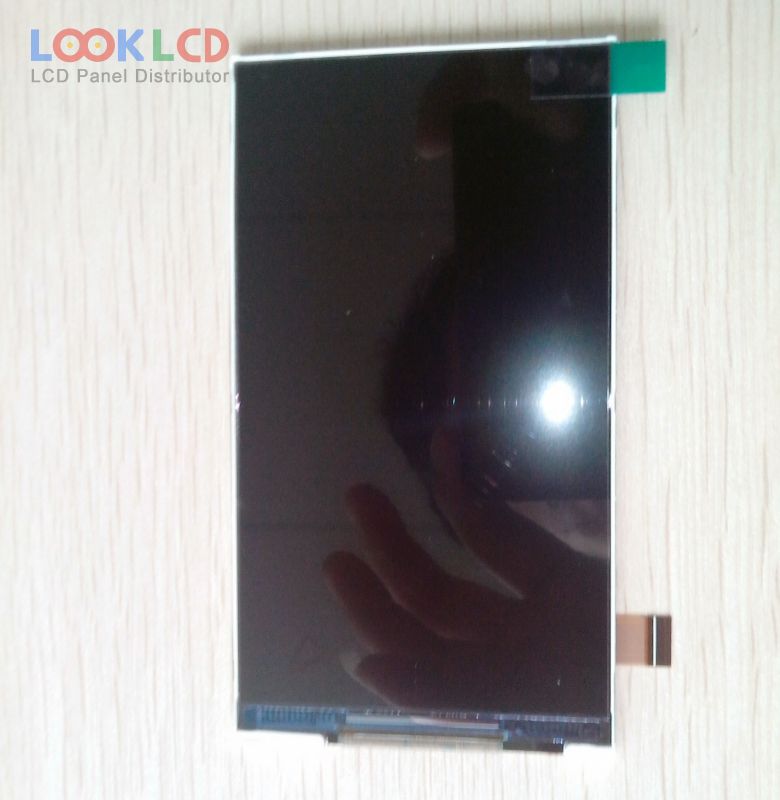

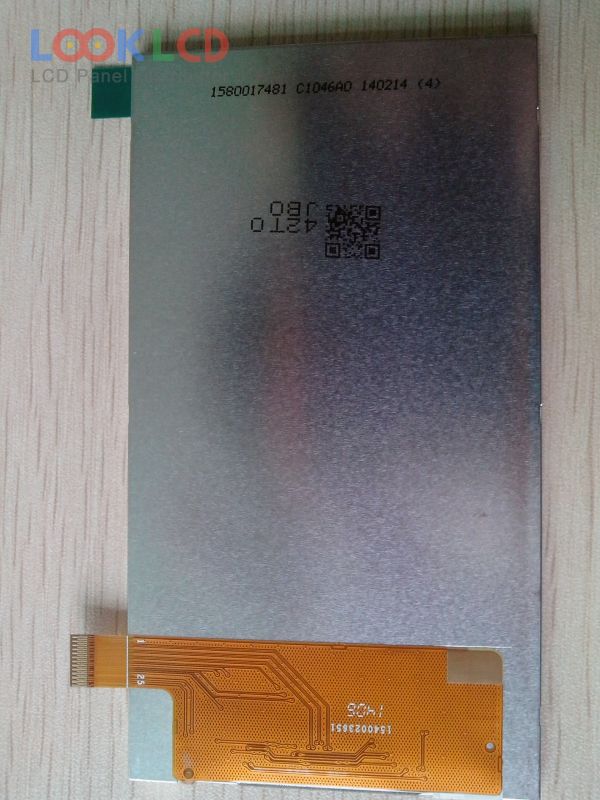

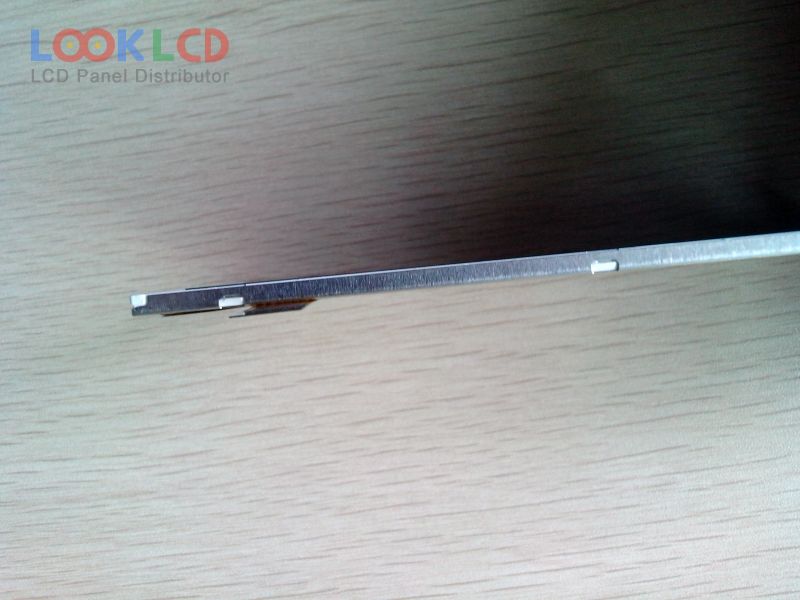

| PartZenbakia | TM045YDH27 |
| Marka | Tianma |
| Tamaina | 4.5 |
| Aplikazio | MPH |
| Ebazpena | 480×854 |
| Konposizioa | LCM |
| Distira | 280 |
| CR | 500:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | MIPI |
| panel marka | TIANMA |
| panel eredua | TM045YDH27 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 4.5 inch |
| ebazpena | 480(RGB)×854 , FWVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 55.44×98.637 mm |
| eskema | 60.04×109.1×2.6 mm |
| azalera | |
| distira | 280 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit), CIE193164% |
| erantzun denbora | 25 (Typ.)(Tr+Td) |
| ikuspegi angelua | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 8S1PWLEDWithout Driver |
| seinale interfazea | MIPI (2 data lanes), 25 pins |
| sarrerako tentsioa | (1.8/2.8)/2.8V (Typ.)(IOVCC/VCC) |
| aplikazio | MPH |
