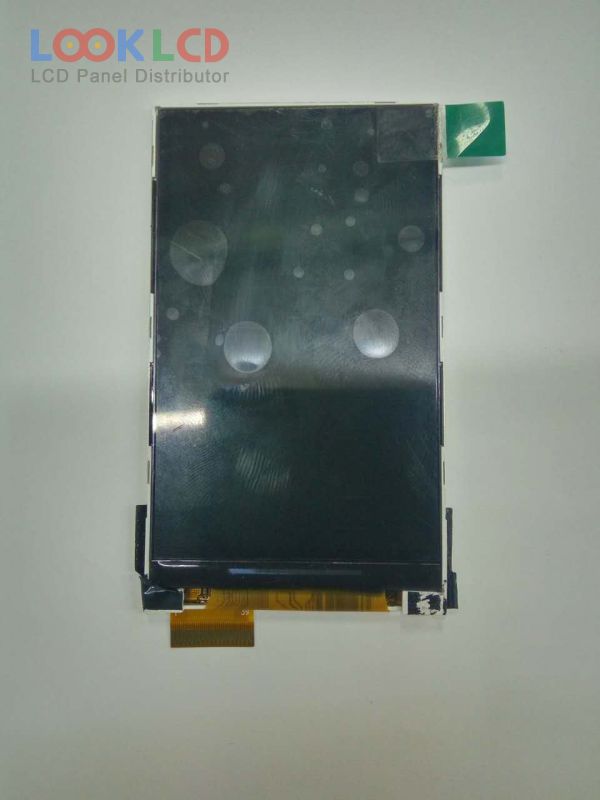

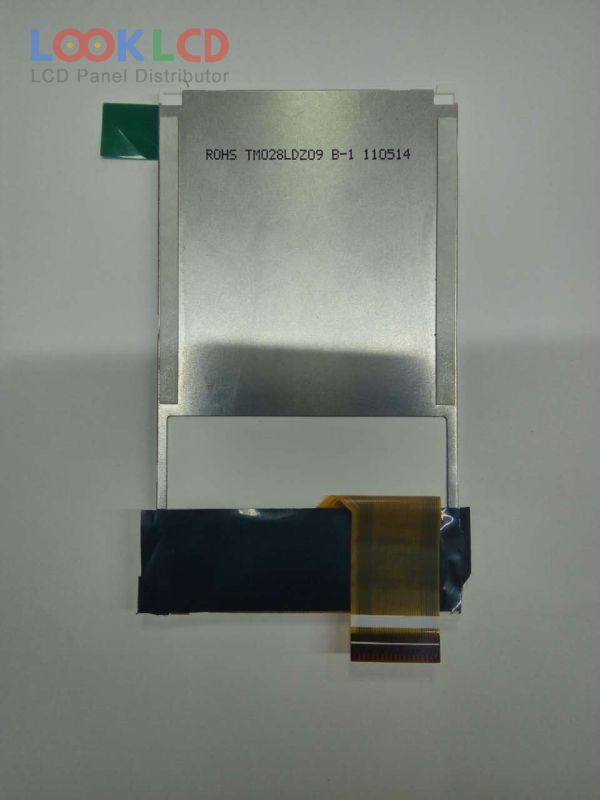

| PartZenbakia | TM028LDZ09 |
| Marka | Tianma |
| Tamaina | 2.8 |
| Aplikazio | MPH |
| Ebazpena | 240×400 |
| Konposizioa | LCM |
| Distira | 240 |
| CR | 450:1 |
| Koloreak | 65K/262K |
| Atzeko argia | WLED |
| Interfazea | CPU |
| panel marka | TIANMA |
| panel eredua | TM028LDZ09 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 2.8 inch |
| ebazpena | 240(RGB)×400 , WQVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 36.72×61.2 mm |
| eskema | 42×72.8 mm |
| azalera | |
| distira | 240 cd/m² (Typ.) |
| kontraste-erlazioa | 450:1 (Typ.) |
| bistaratzeko koloreak | 65K/262K , CIE193156% |
| erantzun denbora | 25 (Typ.)(Tr+Td) |
| ikuspegi angelua | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 1S4PWLEDWithout Driver |
| seinale interfazea | CPU, 39 pins |
| sarrerako tentsioa | (1.8/2.8)/2.8V (Typ.)(VDDIO/VDD) |
| aplikazio | MPH |
