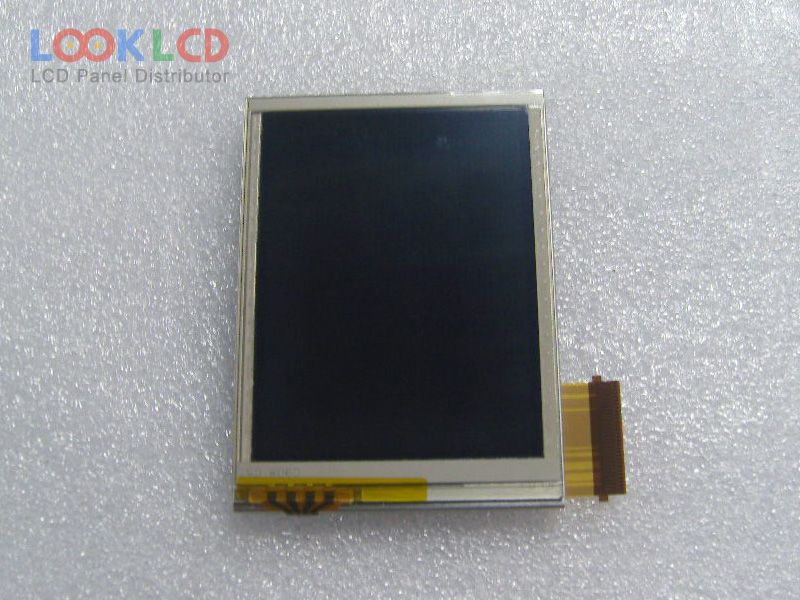

| PartZenbakia | LTP283QV-F03 |
| Marka | Samsung |
| Tamaina | 2.8 |
| Aplikazio | MPH |
| Ebazpena | 240×320 |
| Konposizioa | LCM |
| Distira | 170 |
| CR | 300:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | SAMSUNG |
| panel eredua | LTP283QV-F03 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 2.8 inch |
| ebazpena | 240(RGB)×320 , QVGA |
| bistaratzeko modua | TN, Normally White, TMR |
| eremu aktiboa | 43.2×57.6 mm |
| eskema | 52.9×71.7×6.15 mm |
| azalera | Hard coating (3H) |
| distira | 170 cd/m² (Typ.) |
| kontraste-erlazioa | 300 : 1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 35 (Typ.)(Tr+Td) |
| ikuspegi angelua | 30/30/35/15 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 4S1PWLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 6-bit) + SPI, 61 pins |
| sarrerako tentsioa | 2.8/2.8V (Typ.)(VCI/VCC) |
| aplikazio | MPH |
