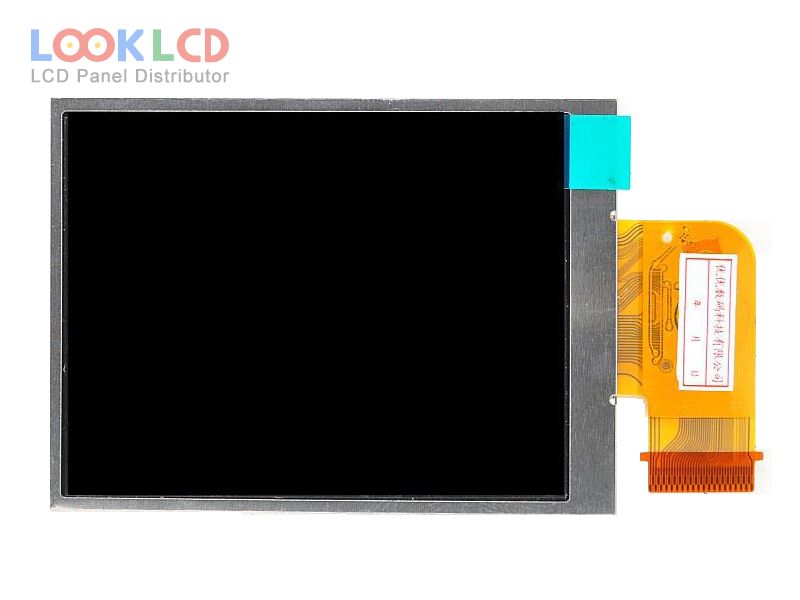

| PartZenbakia | TM027CDH02 |
| Marka | Tianma |
| Tamaina | 2.7 |
| Aplikazio | DSC |
| Ebazpena | 320×240 |
| Konposizioa | LCM |
| Distira | 250 |
| CR | 350:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | Serial RGB |
| panel marka | TIANMA |
| panel eredua | TM027CDH02 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 2.7 inch |
| ebazpena | 320(RGB)×240 , QVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 54×40.5 mm |
| eskema | 63.5×46.6 mm |
| azalera | Clear, Hard coating (3H) |
| distira | 250 cd/m² (Typ.) |
| kontraste-erlazioa | 350:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit), CIE193140% |
| erantzun denbora | 25 (Typ.)(Tr+Td) |
| ikuspegi angelua | 65/65/55/65 (Typ.)(CR≥10)(L/R/U/D) |
| lanpara mota | 2S1PWLEDWithout Driver |
| seinale interfazea | Serial RGB (8-bit) + SPI, CCIR601/656, 39 pins |
| sarrerako tentsioa | 3.3V (Typ.)(VDD) |
| aplikazio | DSC |
