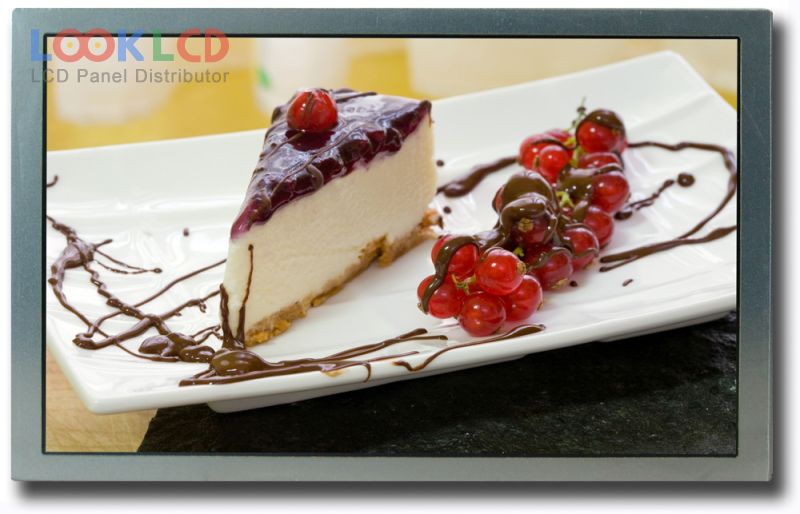

| PartZenbakia | T-55562D090J-LW-A-AAN |
| Marka | Kyocera |
| Tamaina | 9.0 |
| Aplikazio | IA |
| Ebazpena | 800×480 |
| Konposizioa | LCM |
| Distira | 800 |
| CR | 800:1 |
| Koloreak | 262K/16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | OPTREX |
| panel eredua | T-55562D090J-LW-A-AAN 1 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 9.0 inch |
| ebazpena | 800(RGB)×480 , WVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 196.8×118.08 mm |
| eskema | 219×136.2×10 mm |
| azalera | Antiglare, Hard coating (3H) |
| distira | 800 cd/m² (Typ.) |
| kontraste-erlazioa | 800:1 (Typ.) |
| bistaratzeko koloreak | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| erantzun denbora | 4/12 (Typ.)(Tr/Td) |
| ikuspegi angelua | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 7S2PWLEDWithout Driver |
| seinale interfazea | LVDS (1 ch, 6/8-bit), 20 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | IA |
