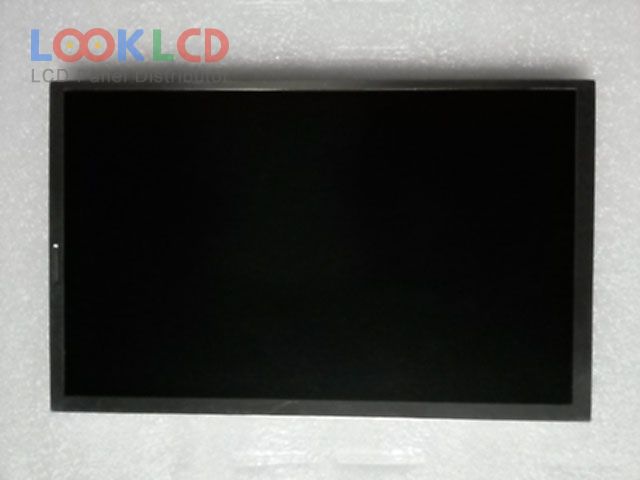

| PartZenbakia | PW100XS1 |
| Marka | E Ink |
| Tamaina | 10.0 |
| Aplikazio | CNS |
| Ebazpena | 640×468 |
| Konposizioa | LCM |
| Distira | 350 |
| CR | 350:1 |
| Koloreak | Full color |
| Atzeko argia | CCFL |
| Interfazea | Analog |
| panel marka | PVI |
| panel eredua | PW100XS1 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.0 inch |
| ebazpena | 640(RGB)×468 |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 216×129.636 mm |
| eskema | 235×145.8×6.4 mm |
| azalera | Antiglare |
| distira | 350 cd/m² (Typ.) |
| kontraste-erlazioa | 350:1 (Typ.) |
| bistaratzeko koloreak | Full color |
| erantzun denbora | 15/25 (Typ.)(Tr/Td) |
| ikuspegi angelua | 50/50/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| lanpara mota | 1 pcsCCFLWithout Driver |
| seinale interfazea | TFT Specific Analog RGB, 32 pins |
| sarrerako tentsioa | 3.3/3.3/13.0/20.0/-8.0V (VCC/VDD1/VDD2/VGH/VEE) |
| aplikazio | CNS |
