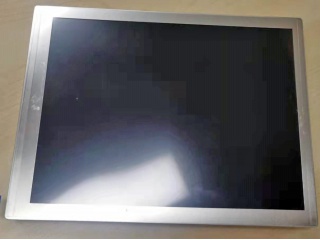

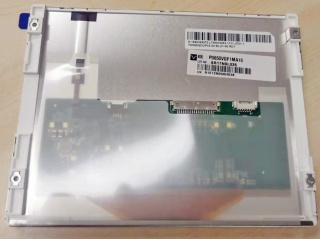

| PartZenbakia | P0650VGF1MA10 |
| Marka | TIANMA |
| Tamaina | 6.5 |
| Aplikazio | Industrial Outdoor H |
| Ebazpena | 640×480 |
| Konposizioa | a-Si TFT-LCD, LCM |
| Distira | |
| CR | 900:1 |
| Koloreak | 262K/16.7M |
| Atzeko argia | 6S2P |
| Interfazea | LVDS |
| panel marka | TIANMA |
| panel eredua | P0650VGF1MA10 |
| panelaren tamaina | 6.5" |
| panel mota | a-Si TFT-LCD, LCM |
| ebazpena | 640(RGB)×480, VGA, 122PPI |
| pixel formatua | RGB Vertical Stripe |
| bistaratzeko eremua | 132.48(W)×99.36(H) mm |
| bezela irekidura | 135.48(W)×102.36(H) mm |
| eskema tamaina | 153(W)×118(H) ×11.2(D) mm |
| azalera | Antiglare |
| distira | 800 cd/m² (Typ.) |
| kontraste-erlazioa | 900:1 (Typ.) (TM) |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10) |
| bistaratzeko modua | SFT, Normally Black, Transmissive |
| ikuspegirik onena | Symmetry |
| erantzun denbora | 30 (Typ.)(Tr+Td) |
| bistaratzeko koloreak | 262K/16.7M 70% NTSC |
| lanpara mota | 6S2P WLED , 70K hours , With LED Driver |
| maiztasuna | 60Hz |
| pantaila taktila | Without |
| panelaren pisua | TBD |
| aplikazio | Industrial Outdoor High Brightness Automotive Display |
| seinale interfazea | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| sarrerako tentsioa | 3.3V (Typ.) |
| ingurunea | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 2.0G (19.6 m/s²) |
