Other OEL9M1007-W-E fitxa teknikoa, zehaztapena, stockak, aplikazioa www.looklcd-eu.com
LookLCD LookLCD


OEL9M1007-W-E

OEL9M1007-W-E

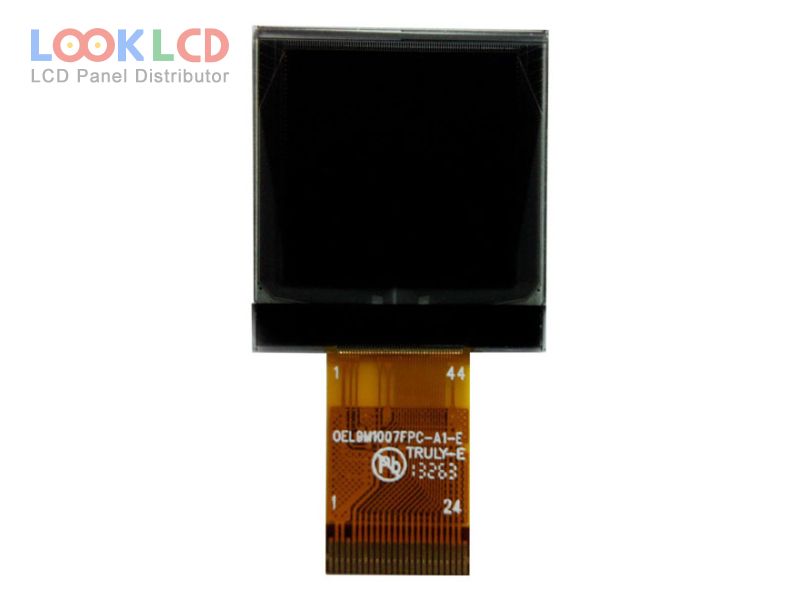

OEL9M1007-W-E thumb
Marka
Other
Tamaina
1.1
Aplikazio
SW
Ebazpena
96×96
Konposizioa
OLED
Distira
100
CR
10000:1
Koloreak
Mono(White)
Atzeko argia
self
Interfazea
CPU/SPI/I²C
In Stock
14153
Zehaztapenak

PartZenbakia OEL9M1007-W-E
MarkaOther
Tamaina1.1
AplikazioSW
Ebazpena96×96
KonposizioaOLED
Distira100
CR10000:1
KoloreakMono(White)
Atzeko argiaself
InterfazeaCPU/SPI/I²C
panel markaTRULY
panel ereduaOEL9M1007-W-E
panel mota PM-OLED , OLED
panelaren tamaina1.1 inch
ebazpena96×96
eremu aktiboa19.655×19.655 mm
eskema25.49×29.1×1.55 mm
azalera
distira100 cd/m² (Typ.)
kontraste-erlazioa10000 : 1 (Min.)
bistaratzeko koloreakMono(White) (1-bit)
ikuspegi angelua80/80/80/80 (Min.)(L/R/U/D)
maiztasuna100Hz
gidariaren icCOG Built-in SH1107G
seinale interfazea8-bit 6800/8080 parallel, 4-wire SPI, I²C, 24 pins
aplikazioSW
Familia Eredua
OEL9M1003-L3-E Other 1.1 96×96
OEL9M1004-L4-E Other 1.5 128×128
OEL9M1007-B-E Other 1.1 96×96
OEL9M1007-R-E Other 1.1 96×96
OEL9M1007-W-E Other 1.1 96×96
OEL9M1007-Y-E Other 1.1 96×96
OEL9M1010-B-E Other 0.95 96×64
OEL9M1010-R-E Other 0.95 96×64
OEL9M1010-W-E Other 0.95 96×64
OEL9M1010-Y-E Other 0.95 96×64
