Other OEL9M1004-L4-E fitxa teknikoa, zehaztapena, stockak, aplikazioa www.looklcd-eu.com
LookLCD LookLCD

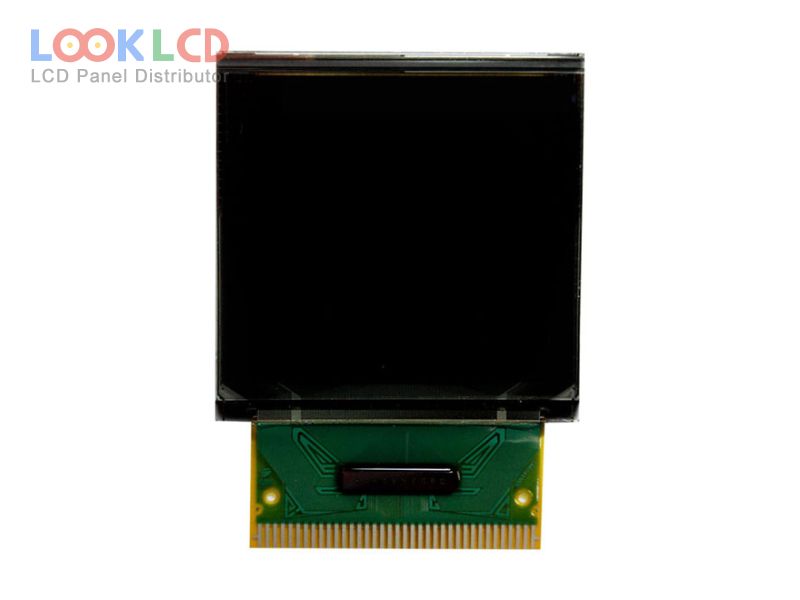

OEL9M1004-L4-E

OEL9M1004-L4-E
OEL9M1004-L4-E thumb
Marka
Other
Tamaina
1.5
Aplikazio
SW
Ebazpena
128×128
Konposizioa
OLED
Distira
80
CR
5000:1
Koloreak
262K
Atzeko argia
self
Interfazea
CPU/SPI
In Stock
2176
Zehaztapenak

PartZenbakia OEL9M1004-L4-E
MarkaOther
Tamaina1.5
AplikazioSW
Ebazpena128×128
KonposizioaOLED
Distira80
CR5000:1
Koloreak262K
Atzeko argiaself
InterfazeaCPU/SPI
panel markaTRULY
panel ereduaOEL9M1004-L4-E
panel mota PM-OLED , OLED
panelaren tamaina1.5 inch
ebazpena128(RGB)×128
eremu aktiboa27.23×27.23 mm
eskema35.5×34.6×1.55 mm
azalera
distira80 cd/m² (Typ.)
kontraste-erlazioa5000 : 1 (Min.)
bistaratzeko koloreak262K (6-bit), CIE193160%
ikuspegi angelua85/85/85/85 (Min.)(L/R/U/D)
maiztasuna100Hz
gidariaren icCOF Built-in SSD1355U8R1
seinale interfazea8/16/18-bit 6800/8080 parallel, 3/4-wire SPI, 37 pins
aplikazioSW
Familia Eredua
OEL9M1003-L3-E Other 1.1 96×96
OEL9M1004-L4-E Other 1.5 128×128
OEL9M1007-B-E Other 1.1 96×96
OEL9M1007-G-E Other 1.1 96×96
OEL9M1007-R-E Other 1.1 96×96
OEL9M1007-Y-E Other 1.1 96×96
OEL9M1010-B-E Other 0.95 96×64
OEL9M1010-G-E Other 0.95 96×64
OEL9M1010-W-E Other 0.95 96×64
OEL9M1010-Y-E Other 0.95 96×64
