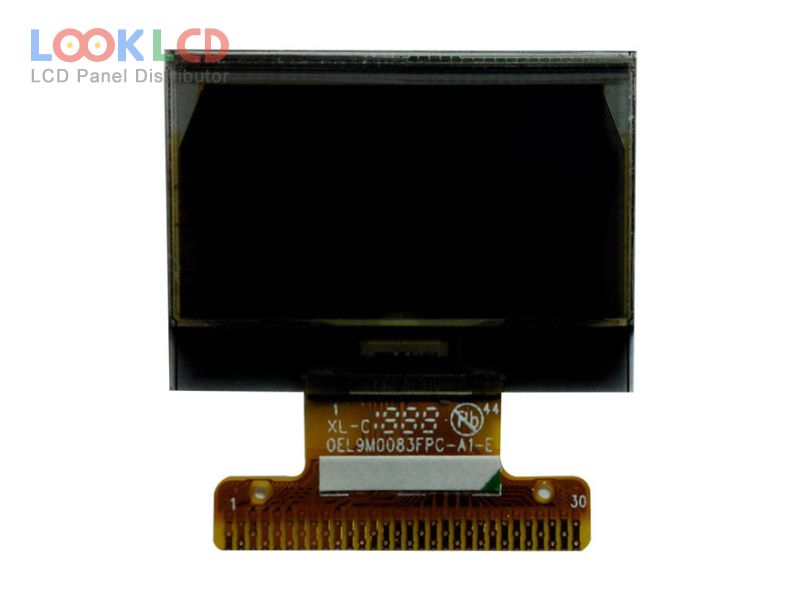

OEL9M0083-G-E

OEL9M0083-G-E
OEL9M0083-G-E thumb
Marka
Other
Tamaina
0.96
Aplikazio
Ebazpena
128×64
Konposizioa
OLED
Distira
CR
10000:1
Koloreak
Mono(Green)
Atzeko argia
self
Interfazea
CPU/SPI/I²C
In Stock
13185
Zehaztapenak

PartZenbakia OEL9M0083-G-E
MarkaOther
Tamaina0.96
Aplikazio
Ebazpena128×64
KonposizioaOLED
Distira
CR10000:1
KoloreakMono(Green)
Atzeko argiaself
InterfazeaCPU/SPI/I²C
panel markaTRULY
panel ereduaOEL9M0083-G-E
panel mota PM-OLED , OLED
panelaren tamaina0.96 inch
ebazpena128×64
eremu aktiboa21.74×11.175 mm
eskema26.7×19.26×1.65 mm
azalera
distira
kontraste-erlazioa10000 : 1 (Min.)
bistaratzeko koloreakMono(Green) (1-bit)
ikuspegi angelua80/80/80/80 (Min.)(L/R/U/D)
maiztasuna100Hz
gidariaren icCOG Built-in SH1106G
seinale interfazea8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins
