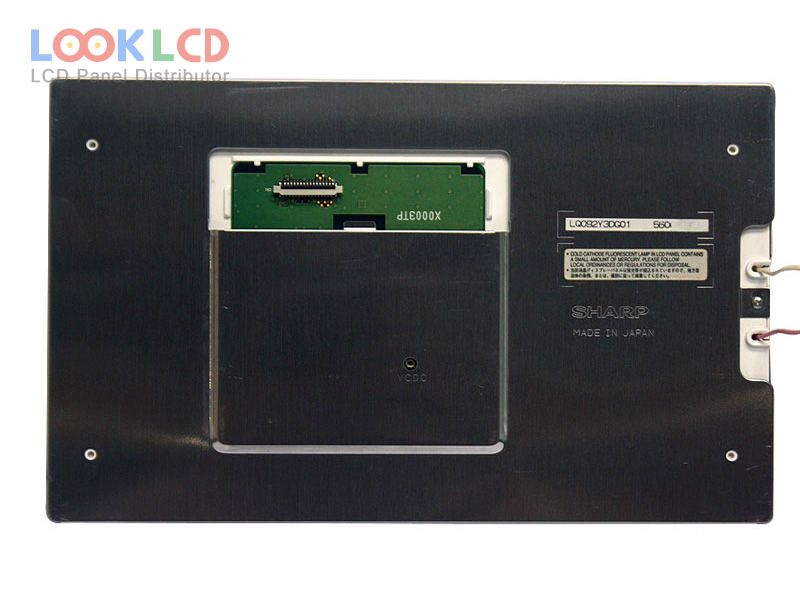

| PartZenbakia | LQ092Y3DG01 |
| Marka | SHARP |
| Tamaina | 9.2 |
| Aplikazio | |
| Ebazpena | 800×480 |
| Konposizioa | LCM |
| Distira | 380 |
| CR | 250:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | TTL |
| panel marka | SHARP |
| panel eredua | LQ092Y3DG01 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 9.2 inch |
| ebazpena | 800(RGB)×480 , WVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 200.4×120.2 mm |
| eskema | 226.6×143.9 mm |
| azalera | |
| distira | 380 cd/m² (Typ.) |
| kontraste-erlazioa | 250:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 30/50 (Typ.)(Tr/Td) |
| ikuspegi angelua | 65/65/55/65 (Typ.)(CR≥5)(L/R/U/D) |
| lanpara mota | 1 pcsCCFL |
| seinale interfazea | Parallel RGB (1 ch, 6-bit), 32 pins |
| sarrerako tentsioa | 5.0V (Typ.)(VCC) |
| rohs: |
