OEL9M0065-B-E

OEL9M0065-B-E

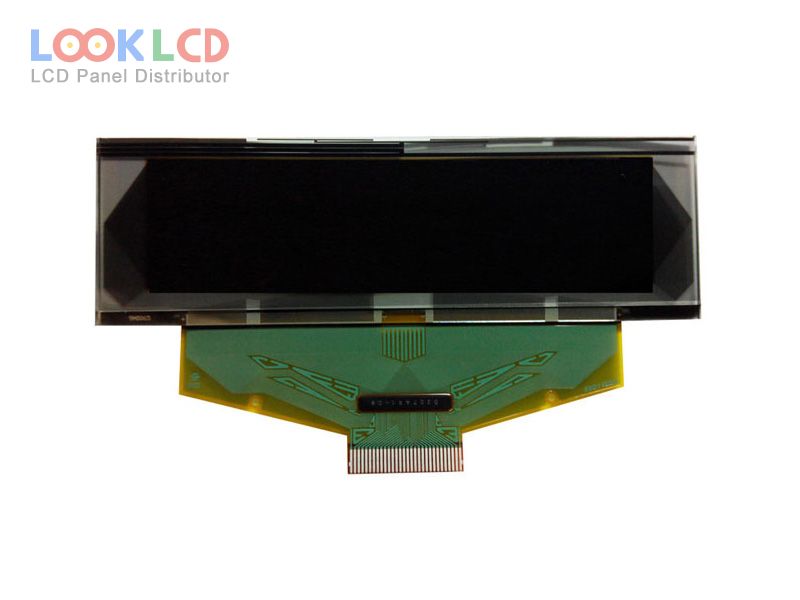

OEL9M0065-B-E thumb
Marka
Other
Tamaina
2.7
Aplikazio
IA
Ebazpena
256×64
Konposizioa
OLED
Distira
CR
10000:1
Koloreak
Grayscale(B)
Atzeko argia
self
Interfazea
CPU/SPI
In Stock
16924
Zehaztapenak

PartZenbakia OEL9M0065-B-E
MarkaOther
Tamaina2.7
AplikazioIA
Ebazpena256×64
KonposizioaOLED
Distira
CR10000:1
KoloreakGrayscale(B)
Atzeko argiaself
InterfazeaCPU/SPI
panel markaTRULY
panel ereduaOEL9M0065-B-E
panel mota PM-OLED , OLED
panelaren tamaina2.7 inch
ebazpena256×64
eremu aktiboa66.53×16.61 mm
eskema82×25.5×1.6 mm
azalera
distira
kontraste-erlazioa10000 : 1 (Min.)
bistaratzeko koloreakGrayscale(B) (4-bit)
ikuspegi angelua80/80/80/80 (Min.)(CR≥10)(L/R/U/D)
maiztasuna100Hz
gidariaren icCOF Built-in SSD1322UR1
seinale interfazea8-bit 6800/8080 parallel, 3/4-wire SPI, 30 pins
aplikazioIA
Familia Eredua
OEL9M0039-W-E Other 1.5 128×128
OEL9M0039-Y-E Other 1.5 128×128
OEL9M0064-B-E Other 2.0 128×32
OEL9M0065-B-E Other 2.7 256×64
OEL9M0065-R-E Other 2.7 256×64
OEL9M0073-R-E Other 1.0 128×64
OEL9M0078-R-E Other 1.45 132×16
OEL9M0078-W-E Other 1.45 132×16
OEL9M0082-R-E Other 1.1 128×128
OEL9M0084-R-E Other 0.91 128×32
