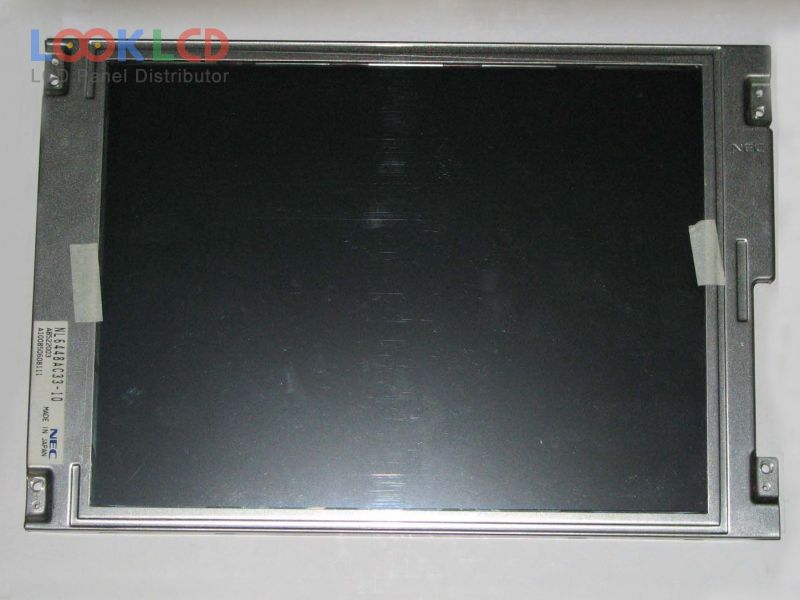

| PartZenbakia | NL6448AC33-10 |
| Marka | NLT |
| Tamaina | 10.4 |
| Aplikazio | NBPC |
| Ebazpena | 640×480 |
| Konposizioa | LCM |
| Distira | 90 |
| CR | 150:1 |
| Koloreak | 4096 |
| Atzeko argia | CCFL |
| Interfazea | TTL |
| panel marka | NEC |
| panel eredua | NL6448AC33-10 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.4 inch |
| ebazpena | 640(RGB)×480 , VGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 211.2×158.4 mm |
| eskema | 270×183×13 mm |
| azalera | |
| distira | 90 cd/m² (Typ.) |
| kontraste-erlazioa | 150:1 (Typ.) |
| bistaratzeko koloreak | 4096 (4-bit), CIE193155% |
| erantzun denbora | 40 (Max.)(Tr) |
| ikuspegi angelua | 45/45/25/25 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 1 pcsCCFLEmbedded (Inverter) |
| seinale interfazea | CMOS (1 ch, 4-bit), 34 pins |
| sarrerako tentsioa | 5.0V (Typ.) |
| aplikazio | NBPC |
| NL6448AC30-09 | NLT | 9.4 | 640×480 |
| NL6448BC18-03F | NLT | 5.7 | 640×480 |
| NL6448BC18-06F | NLT | 5.7 | 640×480 |
| NL6448BC20-18D | NLT | 6.5 | 640×480 |
| NL6448BC20-30F | NLT | 6.5 | 640×480 |
| NL6448BC20-35D | NLT | 6.5 | 640×480 |
| NL6448BC26-17 | NLT | 8.4 | 640×480 |
| NL6448BC33-64 | NLT | 10.4 | 640×480 |
| NL6448BC33-64R | NLT | 10.4 | 640×480 |
| NL6448BC33-71 | NLT | 10.4 | 640×480 |
| B125XW02 V0 | AUO | 12.5 | 1366×768 |
| B154EW09 V1 | AUO | 15.4 | 1280×800 |
| CLAA154WB04A | CPT | 15.4 | 1280×800 |
| LP133WX1-TLC1 | LG Display | 13.3 | 1280×800 |
| LP156WD1-TPB1 | LG Display | 15.6 | 1600×900 |
| LP171WP4-TLN2 | LG Display | 17.1 | 1440×900 |
| LTN156AT24-P01 | Samsung | 15.6 | 1366×768 |
| LTN170CT08-L01 | Samsung | 17.0 | 1920×1200 |
| N140HGE-EA1 | Innolux | 14.0 | 1920×1080 |
| UB141X01 | UNIPAC | 14.1 | 1024×768 |
