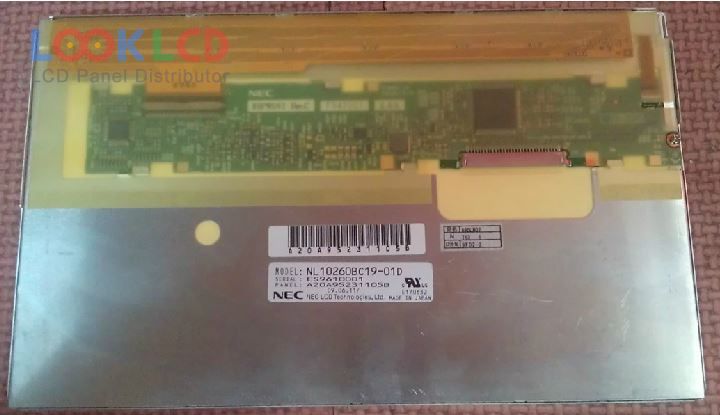

| PartZenbakia | NL10260BC19-01D |
| Marka | NLT |
| Tamaina | 8.9 |
| Aplikazio | IA |
| Ebazpena | 1024×600 |
| Konposizioa | LCM |
| Distira | 300 |
| CR | 700:1 |
| Koloreak | 262K/16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | NEC |
| panel eredua | NL10260BC19-01D |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 8.9 inch |
| ebazpena | 1024(RGB)×600 , WSVGA |
| bistaratzeko modua | UA-SFT, Normally Black, Transmissive |
| eremu aktiboa | 195.072×113.4 mm |
| eskema | 214×129×6.2 mm |
| azalera | Antiglare, Hard coating (3H) |
| distira | 300 cd/m² (Typ.) |
| kontraste-erlazioa | 700:1 (Typ.) |
| bistaratzeko koloreak | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193160% |
| erantzun denbora | 10/15 (Typ.)(Tr/Td) |
| ikuspegi angelua | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | WLEDWithout Driver |
| seinale interfazea | LVDS (1 ch, 6/8-bit), 30 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | IA |
