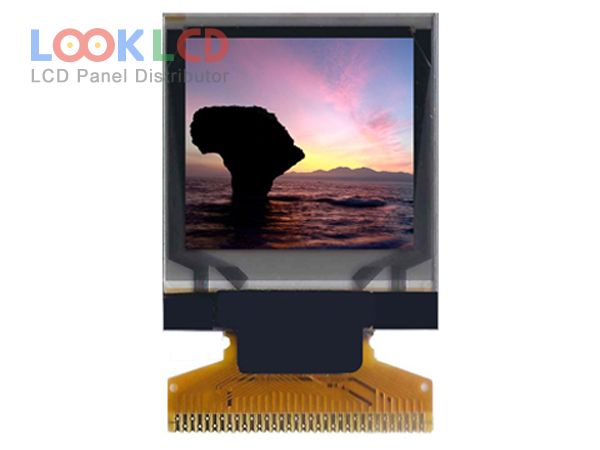

| PartZenbakia | UG-9696TDDCG02 |
| Marka | WiseChip |
| Tamaina | 1.1 |
| Aplikazio | IA |
| Ebazpena | 96×96 |
| Konposizioa | OLED |
| Distira | 100 |
| CR | 10000:1 |
| Koloreak | 65K |
| Atzeko argia | self |
| Interfazea | CPU/SPI |
| panel marka | WiseChip |
| panel eredua | UG-9696TDDCG02 |
| panel mota | PM-OLED , OLED |
| panelaren tamaina | 1.1 inch |
| ebazpena | 96(RGB)×96 |
| eremu aktiboa | 19.852×19.852 mm |
| eskema | 25.9×30.1×1.4 mm |
| azalera | |
| distira | 100 cd/m² (Typ.) |
| kontraste-erlazioa | 10000 : 1 (Typ.) |
| bistaratzeko koloreak | 65K |
| ikuspegi angelua | |
| gidariaren ic | COG Built-in SEPS114A |
| seinale interfazea | 8-bit 6800/8080 parallel, 4-wire SPI, 34 pins |
| sarrerako tentsioa | 2.8/2.8/12.0V (Typ.)(VDD/VDDIO/VCC) |
| rohs: | |
| aplikazio | IA |
| AA104VH02 | Mitsubishi | 10.4 | 640×480 |
| EL320.240-FA3 CC | Lumineq | 4.9 | 320×240 |
| G070VVN01.1 | AUO | 7.0 | 800×480 |
| G150XTN06.4 | AUO | 15.0 | 1024×768 |
| LQ150X1LW73 | SHARP | 15.0 | 1024×768 |
| LTA057A344F | TOSHIBA | 5.7 | 320×240 |
| NL3224BC35-20 | NLT | 5.5 | 320×240 |
| TFD60W20MS | TOSHIBA | 6.0 | 320×240 |
| TX14D11VM1CAA | KOE | 5.7 | 320×240 |
| UG-2864KSWMG01 | WiseChip | 1.54 | 128×64 |
