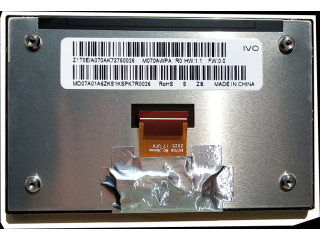

| PartZenbakia | M070AWPA R0 |
| Marka | IVO |
| Tamaina | 7.0 |
| Aplikazio | Outdoor High Brightn |
| Ebazpena | 800×480 |
| Konposizioa | a-Si TFT-LCD, LCM |
| Distira | |
| CR | 1000:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | Parallel |
| marka | IVO |
| eredua | M070AWPA R0 |
| diagonalaren tamaina | 7.0 inch |
| mota | a-Si TFT-LCD, LCM |
| pixel formatua | 800(RGB)×480 [WVGA] 133PPI |
| konfigurazioa | RGB Vertical Stripe |
| eremu aktiboa | 152.4(H)×91.4(V) mm |
| eskema dim. | 166(H)×105.8(V) ×10.5(D) mm |
| bezela eremua | - |
| tratamendua | Antiglare, Hard coating (3H) |
| luminantzia | 1000 cd/m² (Typ.) |
| kontraste-erlazioa | 1000:1 (Typ.) (TM) |
| ikusi norabidea | Symmetry |
| erantzun denbora | 20 (Typ.)(Tr+Td) |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10) |
| funtzionamendu modua | IPS, Normally Black, Transmissive |
| euskarria kolorea | 16.7M 72% NTSC |
| argi iturria | WLED [6S3P] , 30K hours , W/O Driver |
| pisua | 187/206g (Typ./Max.) |
| entzat diseinatua | Outdoor High Brightness Automotive Display |
| fotograma-tasa | 60Hz |
| ukipen-panela | Without |
| interfaze mota | Parallel RGB (1 ch, 8-bit) , 50 pins FPC |
| energia hornidura | 3.3V (Typ.) |
| ingurunea | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C |
| AT070TN83 V.3 | Innolux | 7.0 | 800×480 |
| C070VW02 V1 | AUO | 7.0 | 800×480 |
| CLAA069LA0NCW | CPT | 7.0 | 800×480 |
| CLAA070ND23CW | CPT | 7.0 | 1024×600 |
| CLAA070NJ07CW | CPT | 7.0 | 1024×600 |
| HJ070NA-13A | Innolux | 7.0 | 1024×600 |
| HJ070NA-13D | Innolux | 7.0 | 1024×600 |
| LA070WV4-SD04 | LG Display | 7.0 | 800×480 |
| LD070WS2-SL03 | LG Display | 7.0 | 1024×600 |
| TD070WGCB2 | TPO | 7.0 | 854×480 |
