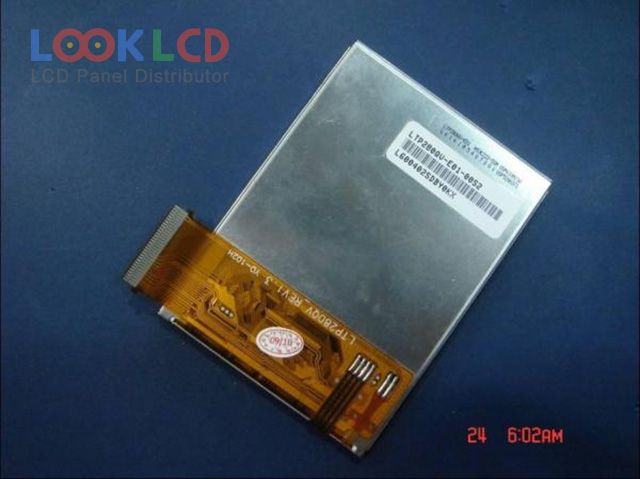

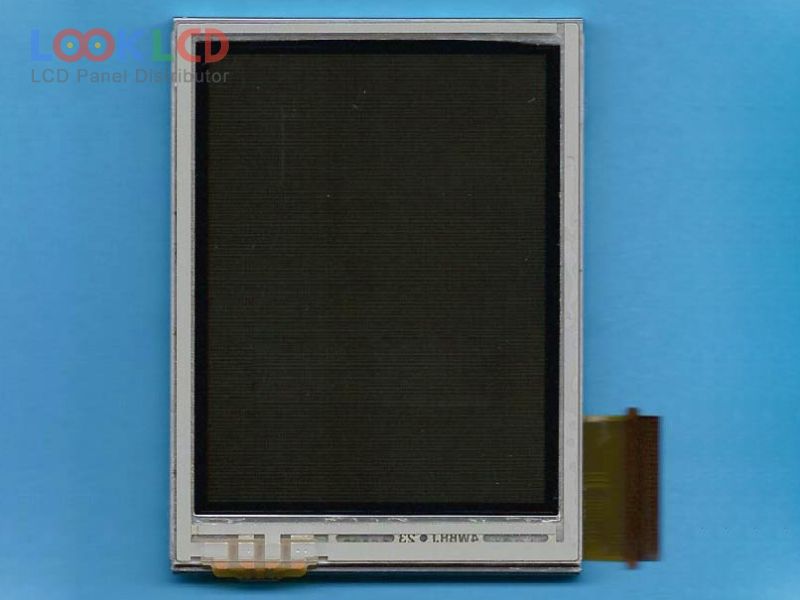

| PartZenbakia | LTP280QV-E01 |
| Marka | Samsung |
| Tamaina | 2.8 |
| Aplikazio | MPH |
| Ebazpena | 240×320 |
| Konposizioa | LCM |
| Distira | 110 |
| CR | 150:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | SAMSUNG |
| panel eredua | LTP280QV-E01 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 2.8 inch |
| ebazpena | 240(RGB)×320 , QVGA |
| bistaratzeko modua | TN, Normally White, Transflective |
| eremu aktiboa | 43.2×57.6 mm |
| eskema | 52.9×71.7×4.75 mm |
| azalera | Hard coating (3H) |
| distira | 110 cd/m² (Typ.) |
| kontraste-erlazioa | 150:1 (Typ.)(Transmissive)6:1 (Typ.)(Reflective) |
| bistaratzeko koloreak | 262K (6-bit), CIE193130% |
| erantzun denbora | 35 (Typ.)(Tr+Td) |
| ikuspegi angelua | 50/40/40/50 (Typ.)(CR≥10)(L/R/U/D) |
| lanpara mota | 6S1PWLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 6-bit), 61 pins |
| sarrerako tentsioa | 3.3/5.0/15/-10V (Typ.)(DVDD/AVDD/VON/VOFF) |
| aplikazio | MPH |
