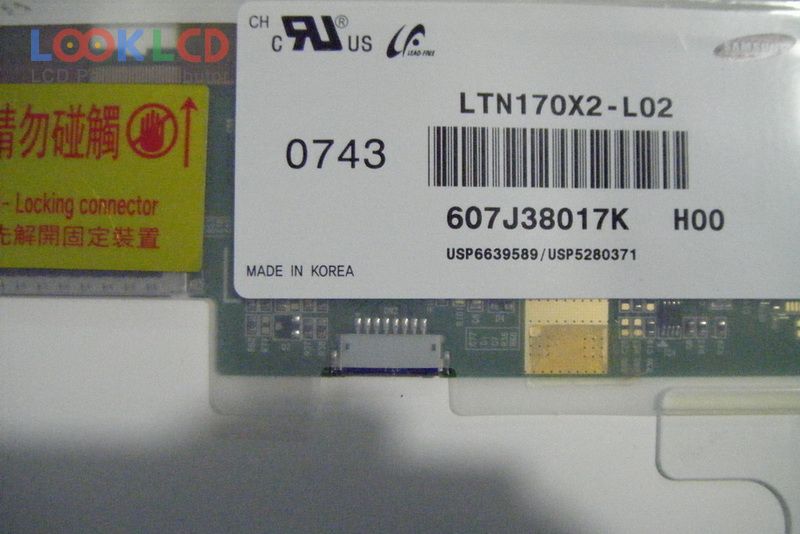

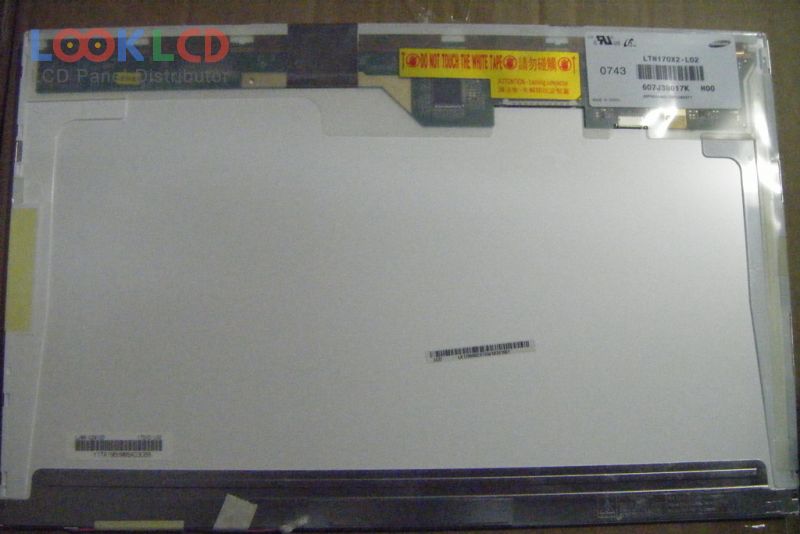

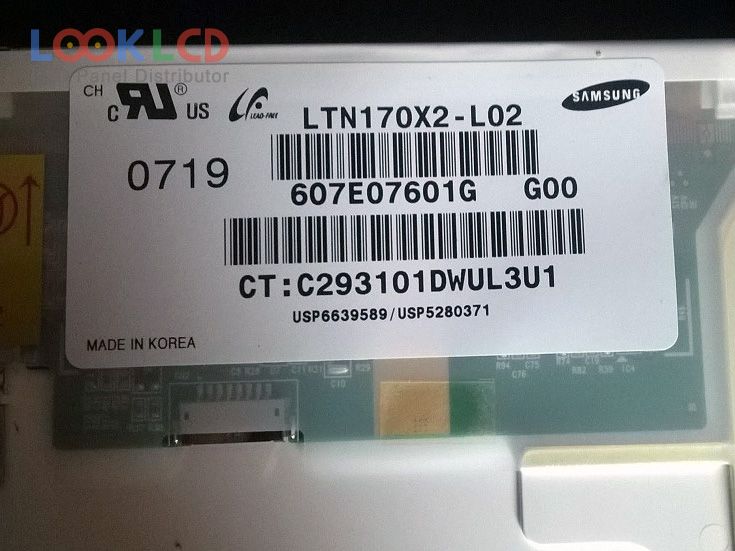

| PartZenbakia | LTN170X2-L02 |
| Marka | Samsung |
| Tamaina | 17.0 |
| Aplikazio | NBPC |
| Ebazpena | 1440×900 |
| Konposizioa | LCM |
| Distira | 200 |
| CR | 500:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | LVDS |
| panel marka | SAMSUNG |
| panel eredua | LTN170X2-L02 2 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 17.0 inch |
| ebazpena | 1440(RGB)×900 , WXGA+ |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 367.2×229.5 mm |
| eskema | 382.2×244.5×6.5 mm |
| forma estiloa | Wedge (PCBA Bent, Depth ≥5.2mm) |
| azalera | Antiglare or Glare, Hard coating (3H) |
| distira | 200 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193145% |
| erantzun denbora | 16 (Typ.)(Tr+Td) |
| ikuspegi angelua | 45/45/20/25 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 1 pcsCCFLWithout Driver |
| seinale interfazea | LVDS (2 ch, 6-bit), 30 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | NBPC |
| LTN170BT06-G01 | Samsung | 17.0 | 1440×900 |
| LTN170BT08-G01 | Samsung | 17.0 | 1440×900 |
| LTN170BT09-001 | Samsung | 17.0 | 1440×900 |
| LTN170CT07-G01 | Samsung | 17.0 | 1920×1200 |
| LTN170CT08-D01 | Samsung | 17.0 | 1920×1200 |
| LTN170U1-L02 | Samsung | 17.0 | 1920×1200 |
| LTN170WA-L01 | Samsung | 17.0 | 1440×900 |
| LTN170WX-L06 | Samsung | 17.0 | 1440×900 |
| LTN170X2-L02 | Samsung | 17.0 | 1440×900 |
| LTN170X2-L03 | Samsung | 17.0 | 1440×900 |
| B140EW01 V5 | AUO | 14.0 | 1280×768 |
| B140XTN03.5 | AUO | 14.0 | 1366×768 |
| LP154WX7-TLB3 | LG Display | 15.4 | 1280×800 |
| LQ133M1JW03 | SHARP | 13.3 | 1920×1080 |
| LQ150X1LAM3 | SHARP | 15.0 | 1024×768 |
| LTN133AT23-001 | Samsung | 13.3 | 1366×768 |
| LTN154AT08-001 | Samsung | 15.4 | 1280×800 |
| LTN156KT01-003 | Samsung | 15.6 | 1600×900 |
| LTN170WX-L06 | Samsung | 17.0 | 1440×900 |
| NT156WHM-N50 | BOE | 15.6 | 1366×768 |
