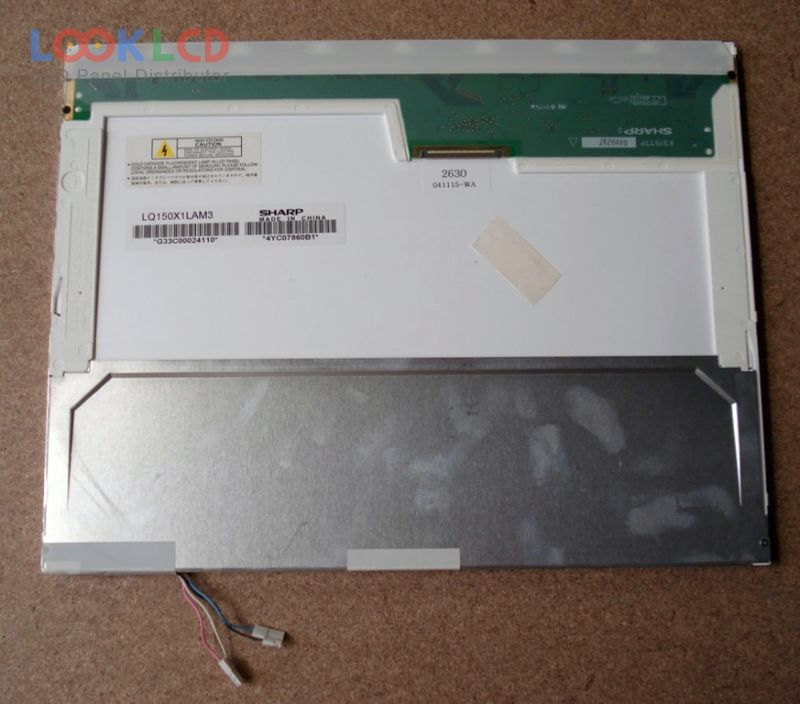

| PartZenbakia | LQ150X1LAM3 |
| Marka | SHARP |
| Tamaina | 15.0 |
| Aplikazio | NBPC |
| Ebazpena | 1024×768 |
| Konposizioa | LCM |
| Distira | 600 |
| CR | 450:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | LVDS |
| panel marka | SHARP |
| panel eredua | LQ150X1LAM3 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 15.0 inch |
| ebazpena | 1024(RGB)×768 , XGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 304.128×228.096 mm |
| eskema | 315.8×243.2×10.3 mm |
| forma estiloa | Wedge (PCBA Bent, Depth ≥5.2mm) |
| azalera | Glare (Haze 0%), Hard coating (2H), Antireflection |
| distira | 600 cd/m² (Typ.) |
| kontraste-erlazioa | 450:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 25 (Typ.)(Tr+Td) |
| ikuspegi angelua | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 2 pcsCCFLWithout Driver |
| seinale interfazea | LVDS (1 ch, 6-bit), 30 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| rohs: | |
| aplikazio | NBPC |
