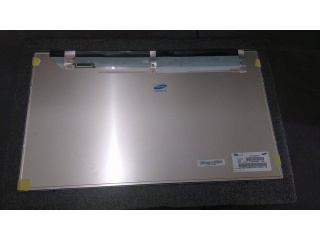

| PartZenbakia | LTF230AN01 |
| Marka | SAMSUNG |
| Tamaina | 23.0 |
| Aplikazio | TV Sets |
| Ebazpena | 1366×768 |
| Konposizioa | a-Si TFT-LCD, LCM |
| Distira | |
| CR | 4000:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| marka | SAMSUNG |
| eredua | LTF230AN01 |
| diagonalaren tamaina | 23.0 inch |
| mota | a-Si TFT-LCD, LCM |
| pixel formatua | 1366(RGB)×768 [WXGA] 68PPI |
| konfigurazioa | RGB Vertical Stripe |
| eremu aktiboa | 508.152(H)×285.696(V) mm |
| eskema dim. | - |
| luminantzia | - |
| kontraste-erlazioa | 4000:1 (Typ.) (TM) |
| ikusi norabidea | Symmetry |
| erantzun denbora | 8 (Typ.)(G to G) |
| ikuspegi angelua | 89/89/89/89 (Typ.)(CR≥10) |
| funtzionamendu modua | PVA, Normally Black, Transmissive |
| euskarria kolorea | 16.7M 68% NTSC |
| argi iturria | WLED |
| pisua | - |
| entzat diseinatua | TV Sets |
| fotograma-tasa | 60Hz |
| ukipen-panela | Without |
| interfaze mota | LVDS (1 ch, 8-bit) , 30 pins Connector |
| energia hornidura | 12.0V (Typ.) |
| ingurunea | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
