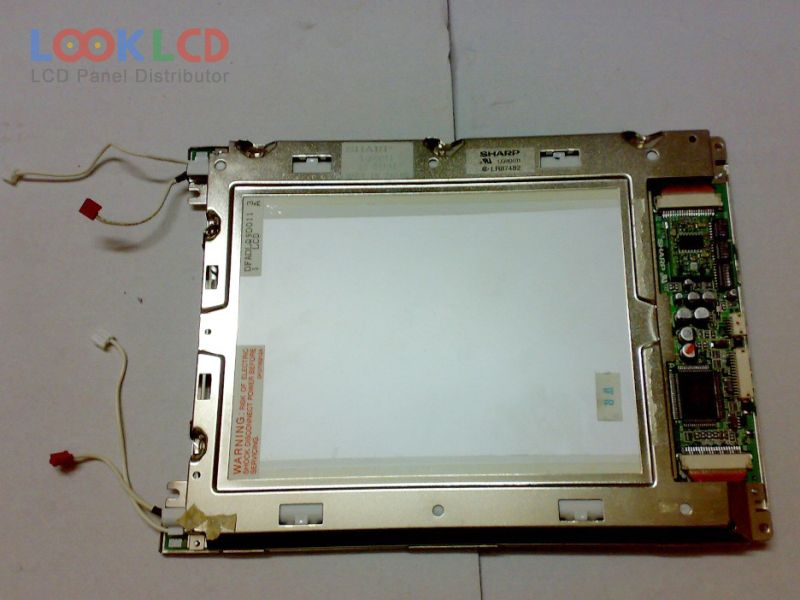

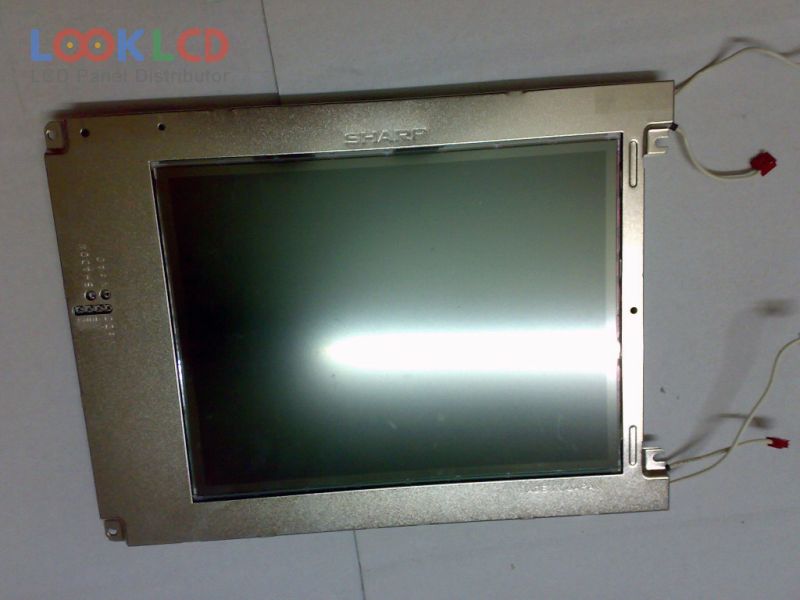

| PartZenbakia | LQ9D011 |
| Marka | SHARP |
| Tamaina | 8.4 |
| Aplikazio | IA |
| Ebazpena | 640×480 |
| Konposizioa | LCM |
| Distira | 70 |
| CR | 60:1 |
| Koloreak | 512 |
| Atzeko argia | CCFL |
| Interfazea | TTL |
| panel marka | SHARP |
| panel eredua | LQ9D011 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 8.4 inch |
| ebazpena | 640(RGB)×480 , VGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 170.88×129.6 mm |
| eskema | 243.5×180 mm |
| azalera | Antiglare, Hard coating (2H) |
| distira | 70 cd/m² (Typ.) |
| kontraste-erlazioa | 60:1 (Typ.) |
| bistaratzeko koloreak | 512 (3-bit) |
| erantzun denbora | 30/50 (Typ.)(Tr/Td) |
| ikuspegi angelua | 45/45/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 2 pcsCCFLWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 3-bit), 21 pins |
| sarrerako tentsioa | 5.0V (Typ.)(VCC) |
| aplikazio | IA |
