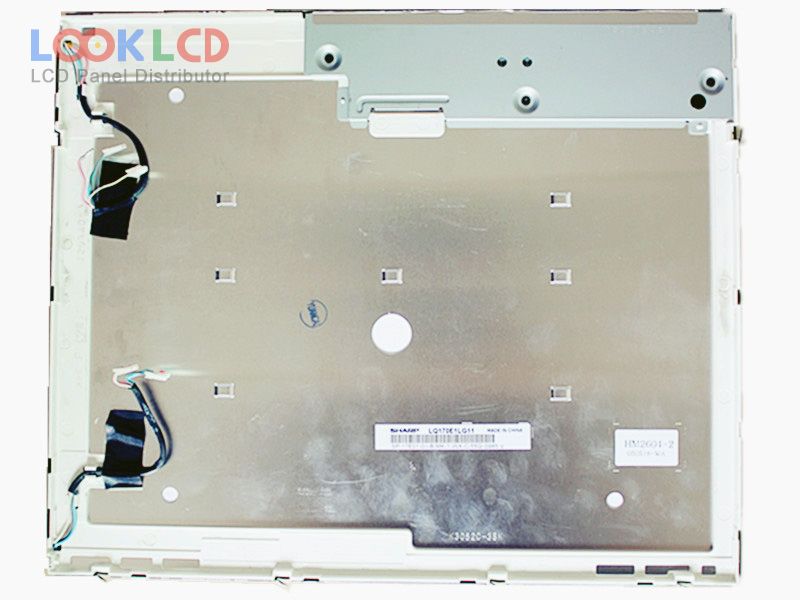

| PartZenbakia | LQ170E1LG11 |
| Marka | SHARP |
| Tamaina | 17.0 |
| Aplikazio | DMPC |
| Ebazpena | 1280×1024 |
| Konposizioa | LCM |
| Distira | 300 |
| CR | 450:1 |
| Koloreak | 16.2M |
| Atzeko argia | CCFL |
| Interfazea | LVDS |
| panel marka | SHARP |
| panel eredua | LQ170E1LG11 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 17.0 inch |
| ebazpena | 1280(RGB)×1024 , SXGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 337.92×270.336 mm |
| eskema | 358.5×296.5×17.5 mm |
| azalera | Antiglare, Hard coating (3H) |
| distira | 300 cd/m² (Typ.) |
| kontraste-erlazioa | 450:1 (Typ.) |
| bistaratzeko koloreak | 16.2M (6-bit + FRC) |
| erantzun denbora | 16 (Typ.)(Tr+Td) |
| ikuspegi angelua | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 4 pcsCCFLWithout Driver |
| seinale interfazea | LVDS (2 ch, 8-bit), 30 pins |
| sarrerako tentsioa | 5.0V (Typ.) |
| rohs: | |
| aplikazio | DMPC |
