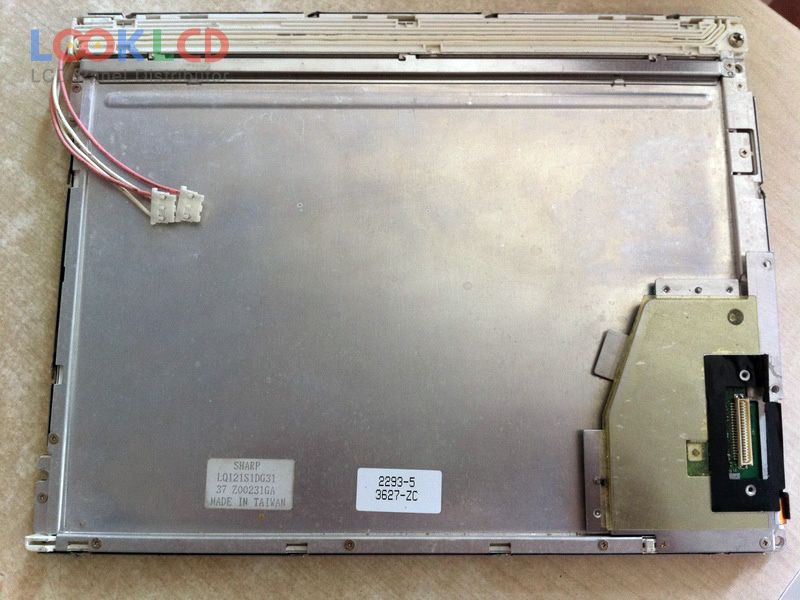

| PartZenbakia | LQ121S1DG31 |
| Marka | SHARP |
| Tamaina | 12.1 |
| Aplikazio | IA |
| Ebazpena | 800×600 |
| Konposizioa | LCM |
| Distira | 300 |
| CR | 300:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | TTL |
| panel marka | SHARP |
| panel eredua | LQ121S1DG31 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 12.1 inch |
| ebazpena | 800(RGB)×600 , SVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 246×184.5 mm |
| eskema | 276×209×14 mm |
| azalera | Antiglare (Haze 28%), Hard coating (3H) |
| distira | 300 cd/m² (Typ.) |
| kontraste-erlazioa | 300:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 15/30 (Typ.)(Tr/Td) |
| ikuspegi angelua | 60/60/45/55 (Typ.)(CR≥10)(L/R/U/D) |
| lanpara mota | 2 pcsCCFLWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 6-bit), 41 pins |
| sarrerako tentsioa | 3.3/5.0V (Typ.)(VCC) |
| aplikazio | IA |
