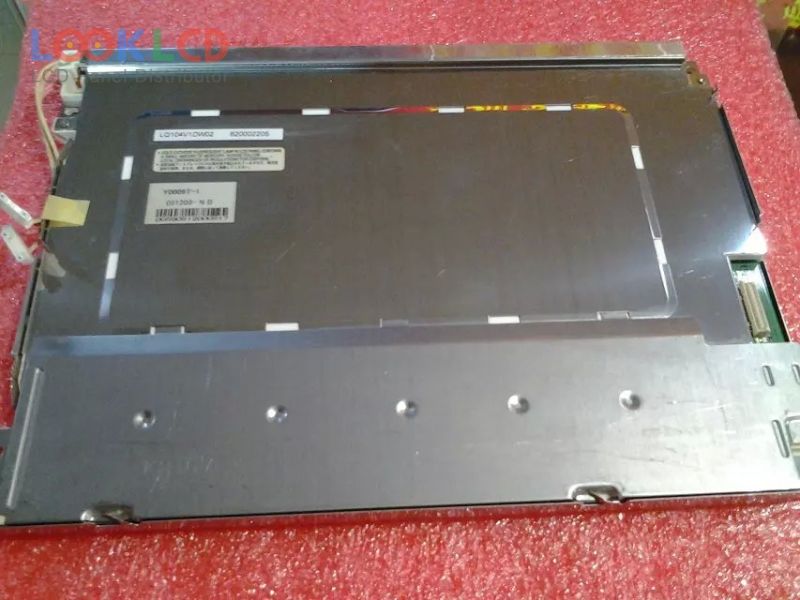

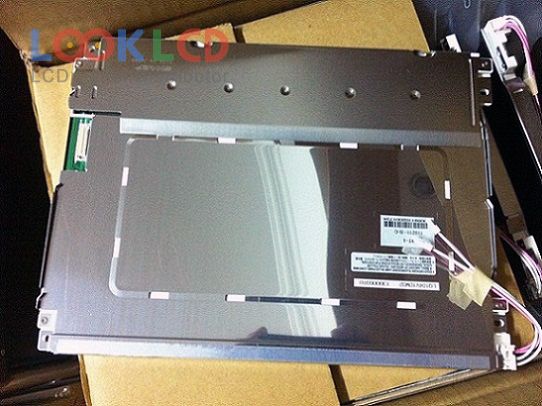

| PartZenbakia | LQ104V1DW02 |
| Marka | SHARP |
| Tamaina | 10.4 |
| Aplikazio | IA |
| Ebazpena | 640×480 |
| Konposizioa | LCM |
| Distira | 380 |
| CR | 450:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | TTL |
| panel marka | SHARP |
| panel eredua | LQ104V1DW02 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.4 inch |
| ebazpena | 640(RGB)×480 , VGA |
| bistaratzeko modua | ASV, Normally Black, Transmissive |
| eremu aktiboa | 211.2×158.4 mm |
| eskema | 246.5×179.4×15.5 mm |
| azalera | Antiglare, Hard coating (3H), Antireflection |
| distira | 380 cd/m² (Typ.) |
| kontraste-erlazioa | 450:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 12/13 (Typ.)(Tr/Td) |
| ikuspegi angelua | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| lanpara mota | 2 pcsCCFLWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 6-bit), 31 pins |
| sarrerako tentsioa | 3.3/5.0V (Typ.)(VCC) |
| aplikazio | IA |
