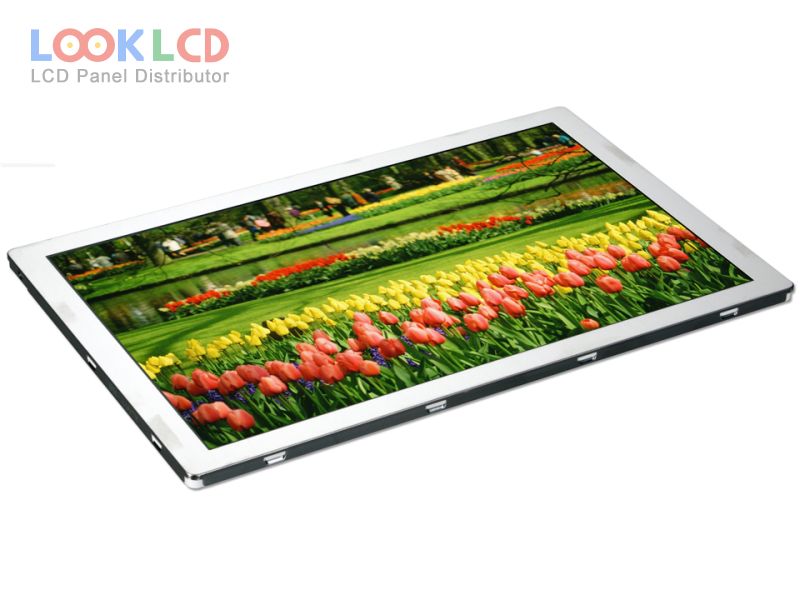

| PartZenbakia | LQ085Y3DW01 |
| Marka | SHARP |
| Tamaina | 8.5 |
| Aplikazio | IA |
| Ebazpena | 800×480 |
| Konposizioa | LCM |
| Distira | 350 |
| CR | 1000:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | SHARP |
| panel eredua | LQ085Y3DW01 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 8.5 inch |
| ebazpena | 800×480(RGB) , WVGA |
| bistaratzeko modua | ASV, Normally Black, Transmissive |
| eremu aktiboa | 184.8×110.88 mm |
| eskema | 210×134 mm |
| azalera | Antiglare |
| distira | 350 cd/m² (Typ.) |
| kontraste-erlazioa | 1000:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit) |
| erantzun denbora | 35 (Typ.)(Tr+Td) |
| ikuspegi angelua | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 9S4PWLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 8-bit), 50 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | IA |
