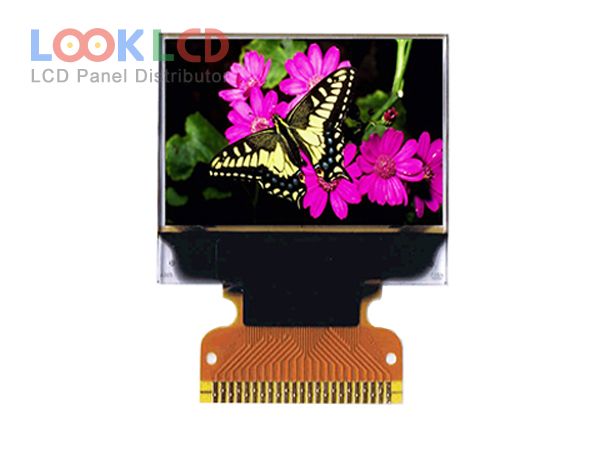

| PartZenbakia | UG-9664HDDAG01 |
| Marka | WiseChip |
| Tamaina | 0.95 |
| Aplikazio | IA |
| Ebazpena | 96×64 |
| Konposizioa | OLED |
| Distira | 100 |
| CR | 1000:1 |
| Koloreak | 65K |
| Atzeko argia | self |
| Interfazea | CPU/SPI |
| panel marka | WiseChip |
| panel eredua | UG-9664HDDAG01 |
| panel mota | PM-OLED , OLED |
| panelaren tamaina | 0.95 inch |
| ebazpena | 96(RGB)×64 |
| eremu aktiboa | 20.14×13.42 mm |
| eskema | 25.7×22.2×1.6 mm |
| azalera | |
| distira | 100 cd/m² (Typ.) |
| kontraste-erlazioa | 1000 : 1 (Typ.) |
| bistaratzeko koloreak | 65K |
| ikuspegi angelua | 80/80/80/80 (Min.)(L/R/U/D) |
| gidariaren ic | COG Built-in SSD1331Z |
| seinale interfazea | 8-bit 6800/8080 parallel, 4-wire SPI, 23 pins |
| sarrerako tentsioa | 2.8/2.8/14.0V (Typ.)(VDD/VDDIO/VCC) |
| rohs: | |
| aplikazio | IA |
