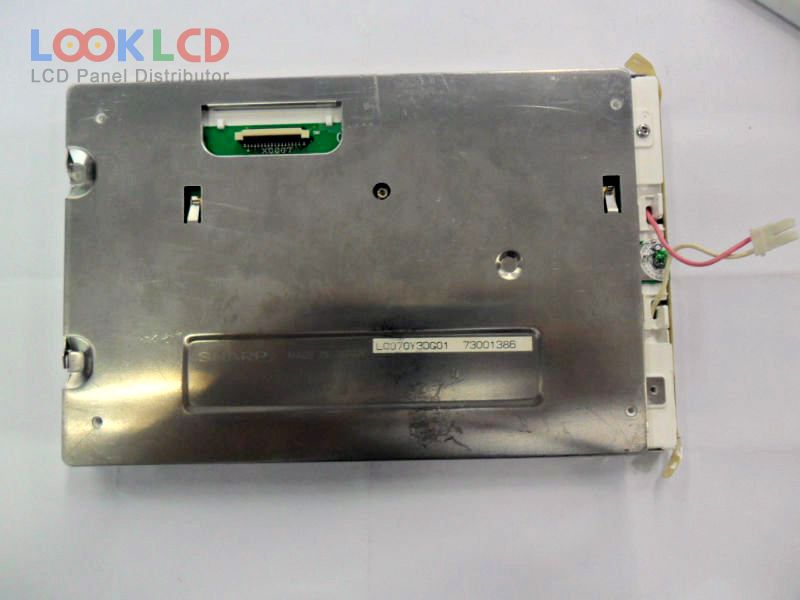

| PartZenbakia | LQ070Y3DG01 |
| Marka | SHARP |
| Tamaina | 7.0 |
| Aplikazio | DPF |
| Ebazpena | 800×480 |
| Konposizioa | LCM |
| Distira | 380 |
| CR | 350:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | TTL |
| panel marka | SHARP |
| panel eredua | LQ070Y3DG01 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 800(RGB)×480 , WVGA |
| bistaratzeko modua | Transmissive |
| eremu aktiboa | 152.4×91.44 mm |
| eskema | 175×111.5×13.8 mm |
| azalera | |
| distira | 380 cd/m² (Typ.) |
| kontraste-erlazioa | 350:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 10/15 (Typ.)(Tr/Td) |
| ikuspegi angelua | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 1 pcsCCFLWithout Driver |
| seinale interfazea | CMOS (1 ch, 6-bit), 32 pins |
| sarrerako tentsioa | 5.0V (Typ.) |
| aplikazio | DPF |
| LQ070S1DW01 | SHARP | 7.0 | 600×800 |
| LQ070T1LG01 | SHARP | 7.0 | 800×480 |
| LQ070T5DG30 | SHARP | 7.0 | |
| LQ070T5DR06 | SHARP | 7.0 | 480×240 |
| LQ070Y3DG04 | SHARP | 7.0 | 800×480 |
| LQ070Y3DG3A | SHARP | 7.0 | 800×480 |
| LQ070Y3LG4A | SHARP | 7.0 | 800×480 |
| LQ070Y3LW01 | SHARP | 7.0 | 800×480 |
| LQ070Y5DA02A | SHARP | 7.0 | 800×480 |
| LQ070Y5DG30 | SHARP | 7.0 | 800×480 |
| A080SN02 V0 | AUO | 8.0 | 800×600 |
| A080SN03 V0 | AUO | 8.0 | 800×600 |
| AT090TN10 | Innolux | 9.0 | 800×480 |
| AT102TN03 V.9 | Innolux | 10.2 | 800×480 |
| EJ080NA-04C | Innolux | 8.0 | 1024×768 |
| HSD100IFW1-C01 | HannStar | 10.1 | 1024×600 |
| HSD100IFW1-F03 | HannStar | 10.1 | 1024×600 |
| HSD100IXN1-A00 | HannStar | 10.0 | 1024×768 |
| LW850AT9301 | Innolux | 8.5 | 800×480 |
| P64AN2WP02 | E Ink | 6.4 | 320×234 |
