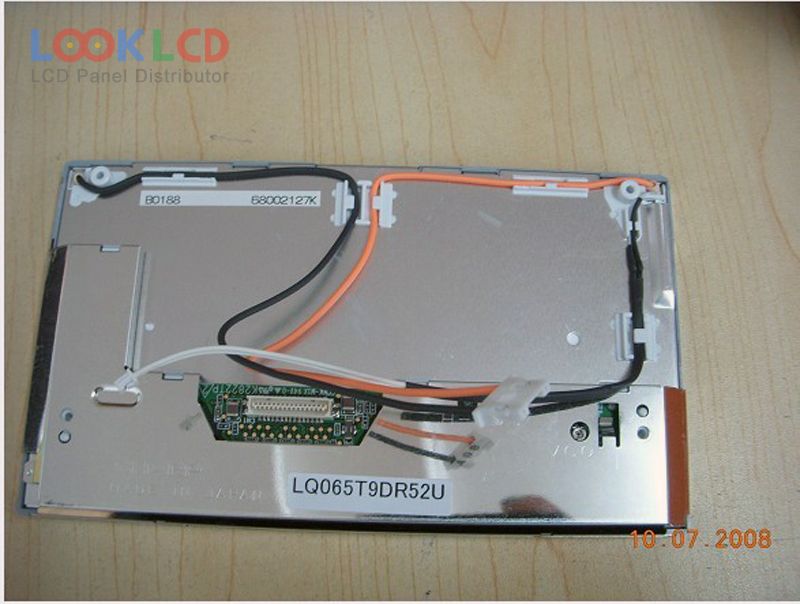

| PartZenbakia | LQ065T9DR52U |
| Marka | SHARP |
| Tamaina | 6.5 |
| Aplikazio | CNS |
| Ebazpena | 400×240 |
| Konposizioa | LCM |
| Distira | 220 |
| CR | 60:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | TTL |
| panel marka | SHARP |
| panel eredua | LQ065T9DR52U |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 6.5 inch |
| ebazpena | 400(RGB)×240 , WQVGA |
| bistaratzeko modua | TN, Normally White, Transflective |
| eremu aktiboa | 143.4×79.326 mm |
| eskema | 155×89.2 mm |
| azalera | Antiglare, Antireflection |
| distira | 220 cd/m² (Typ.) |
| kontraste-erlazioa | 60:1 (Min.)(Transmissive)5:1 (Typ.)(Reflective) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 10/25 (Typ.)(Tr/Td) |
| ikuspegi angelua | 50/50/40/45 (Typ.)(CR≥5)(L/R/U/D) |
| lanpara mota | 1 pcsCCFLWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 6-bit), 31 pins |
| sarrerako tentsioa | 5/10/-10V (Typ.)(VSH/VGH/VGL) |
| aplikazio | CNS |
