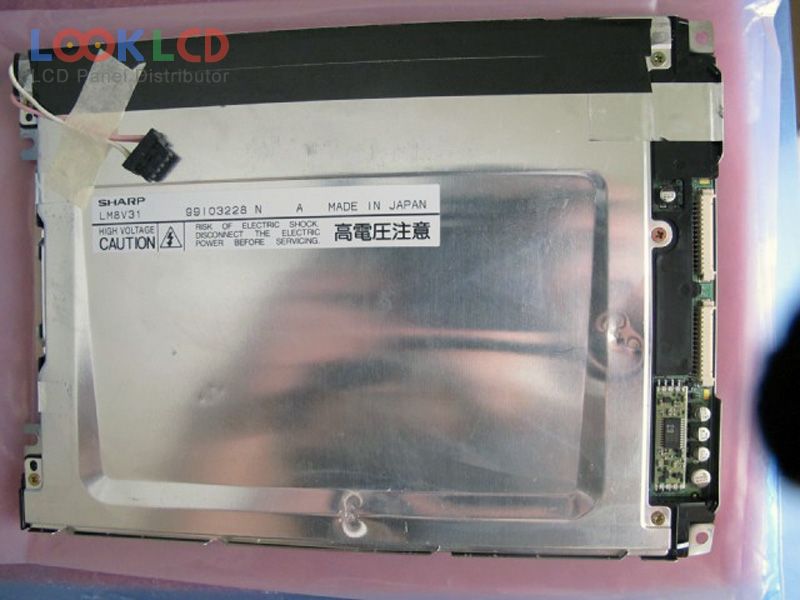

| PartZenbakia | LM8V31 |
| Marka | SHARP |
| Tamaina | 7.7 |
| Aplikazio | IA |
| Ebazpena | 640×480 |
| Konposizioa | LCM |
| Distira | 55 |
| CR | 30:1 |
| Koloreak | Color |
| Atzeko argia | CCFL |
| Interfazea | Parallel Data |
| panel marka | SHARP |
| panel eredua | LM8V31 |
| panel mota | CSTN-LCD , LCM |
| panelaren tamaina | 7.7 inch |
| ebazpena | 640(RGB)×480 , VGA |
| bistaratzeko modua | STN, Normally Black, Transmissive |
| eremu aktiboa | 157.42×118.06 mm |
| eskema | 197×142.5 mm |
| azalera | |
| distira | 55 cd/m² (Typ.) |
| kontraste-erlazioa | 30:1 (Typ.) |
| bistaratzeko koloreak | Color |
| erantzun denbora | 270/80 (Typ.)(Tr/Td) |
| ikuspegi angelua | 30/30/25/15 (Typ.)(CR≥5)(L/R/U/D) |
| maiztasuna | 75Hz |
| lanpara mota | 1 pcsCCFLWithout Driver |
| seinale interfazea | Parallel Data (8-bit), 29 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | IA |
