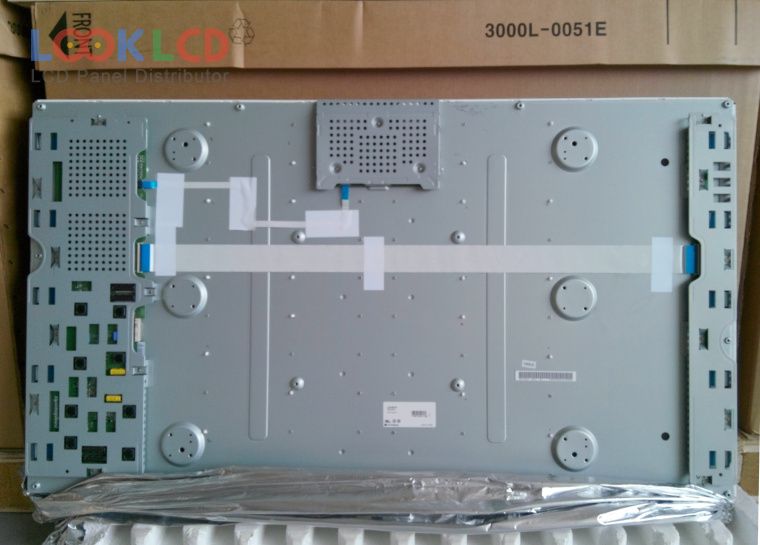

| PartZenbakia | LD470DXS-SCA1 |
| Marka | LG Display |
| Tamaina | 47 |
| Aplikazio | DID |
| Ebazpena | 1366×768 |
| Konposizioa | LCM |
| Distira | 800 |
| CR | 1400:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | LG Display |
| panel eredua | LD470DXS-SCA1 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 47 inch |
| ebazpena | 1366(RGB)×768 , WXGA |
| bistaratzeko modua | S-IPS, Normally Black, Transmissive |
| eremu aktiboa | 1039.87×584.64 mm |
| eskema | 1046.8×591.6×50.5 mm, Videowall Seam 6.9 mm |
| azalera | Hard coating (3H), Reflection 2.0% (Max.) |
| distira | 800 cd/m² (Typ.) |
| kontraste-erlazioa | 1400:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit), CIE193172% |
| erantzun denbora | 12 (Typ.)(G to G) |
| ikuspegi angelua | 89/89/89/89 (Min.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | WLEDEmbedded (LED Driver) |
| seinale interfazea | LVDS (1 ch, 8-bit), 30 pins |
| sarrerako tentsioa | 12.0V (Typ.) |
| aplikazio | DID |
