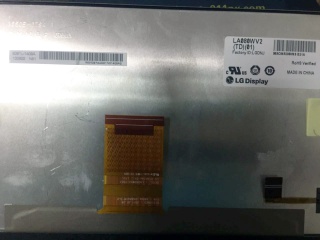

| PartZenbakia | LA070WV2-TD01 |
| Marka | LG Display |
| Tamaina | 7.0 |
| Aplikazio | Automotive Display |
| Ebazpena | 800×480 |
| Konposizioa | a-Si TFT-LCD, LCM |
| Distira | |
| CR | 500:1 |
| Koloreak | 262K |
| Atzeko argia | 9S2P |
| Interfazea | Parallel |
| panel marka | LG Display |
| panel eredua | LA070WV2-TD01 |
| panelaren tamaina | 7.0" |
| panel mota | a-Si TFT-LCD, LCM |
| ebazpena | 800(RGB)×480, WVGA, 133PPI |
| pixel formatua | RGB Vertical Stripe |
| bistaratzeko eremua | 152.4(W)×91.44(H) mm |
| bezela irekidura | 154.45(W)×93.24(H) mm |
| eskema tamaina | 169(W)×103.45(H) mm |
| azalera | Antiglare |
| distira | 550 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) (TM) |
| ikuspegi angelua | 70/70/50/60 (Typ.)(CR≥10) |
| bistaratzeko modua | TN, Normally White, Transmissive |
| ikuspegirik onena | - |
| erantzun denbora | 6/9 (Typ.)(Tr/Td) |
| bistaratzeko koloreak | 262K 64% NTSC |
| lanpara mota | 9S2P WLED , Without Driver |
| maiztasuna | 60Hz |
| pantaila taktila | Without |
| panelaren pisua | 165/175g (Typ./Max.) |
| aplikazio | Automotive Display |
| seinale interfazea | Parallel RGB (1 ch, 6-bit) , 60 pins FPC |
| sarrerako tentsioa | 3.3/10.0/18.5/-8.5V (Typ.)(DVDD/AVDD/VGH/VGL) |
| ingurunea | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C |
