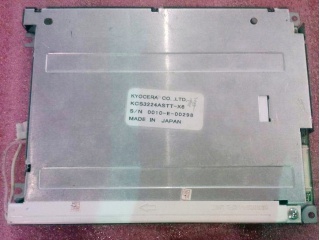

| PartZenbakia | KCS3224ASTT-X6 |
| Marka | Kyocera |
| Tamaina | 5.7 |
| Aplikazio | Industrial |
| Ebazpena | 320×240 |
| Konposizioa | CSTN-LCD , LCM |
| Distira | |
| CR | 25:1 |
| Koloreak | Color |
| Atzeko argia | - |
| Interfazea | Parallel |
| marka | Kyocera |
| diagonalaren tamaina | 5.7 inch |
| pixel formatua | 320(RGB)×240 [QVGA] 70PPI |
| eremu aktiboa | 115.2(H)×86.4(V) mm |
| luminantzia | - |
| ikusi norabidea | - |
| ikuspegi angelua | 50/50/30/30 (Typ.)(CR≥2) |
| euskarria kolorea | Color |
| pisua | - |
| fotograma-tasa | 75Hz |
| interfaze mota | Parallel Data (1ch, 8-bit) Connector |
| energia hornidura | 5.0V (Typ.) |
| ingurunea | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| eredua | KCS3224ASTT-X6 |
| mota | CSTN-LCD , LCM |
| konfigurazioa | RGB Vertical Stripe |
| eskema dim. | - |
| kontraste-erlazioa | 25:1 (Typ.) (TM) |
| erantzun denbora | 220/110 (Typ.)(Tr/Td) |
| funtzionamendu modua | STN, Normally Black, Transmissive |
| argi iturria | |
| entzat diseinatua | Industrial |
| ukipen-panela | Without |
