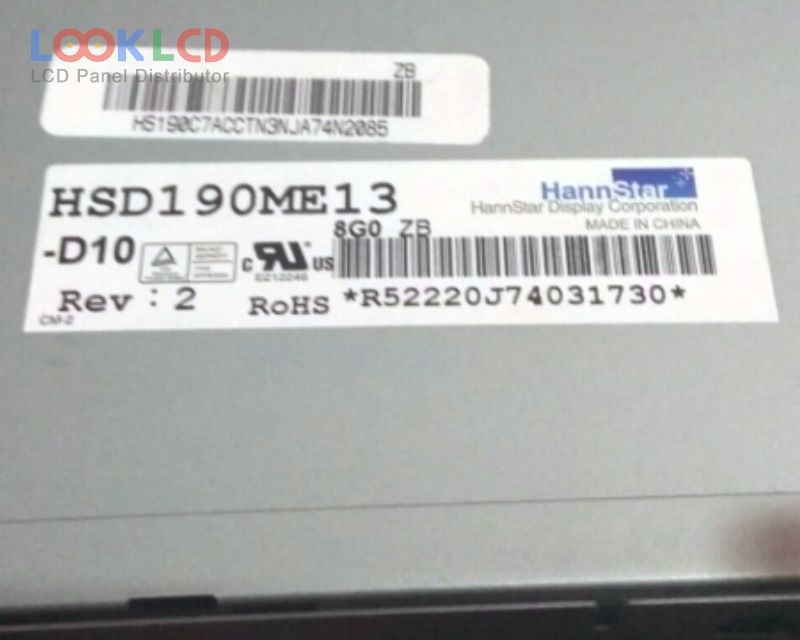

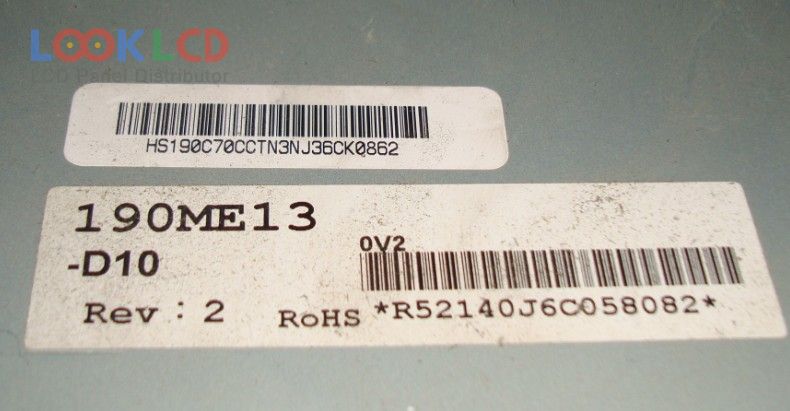

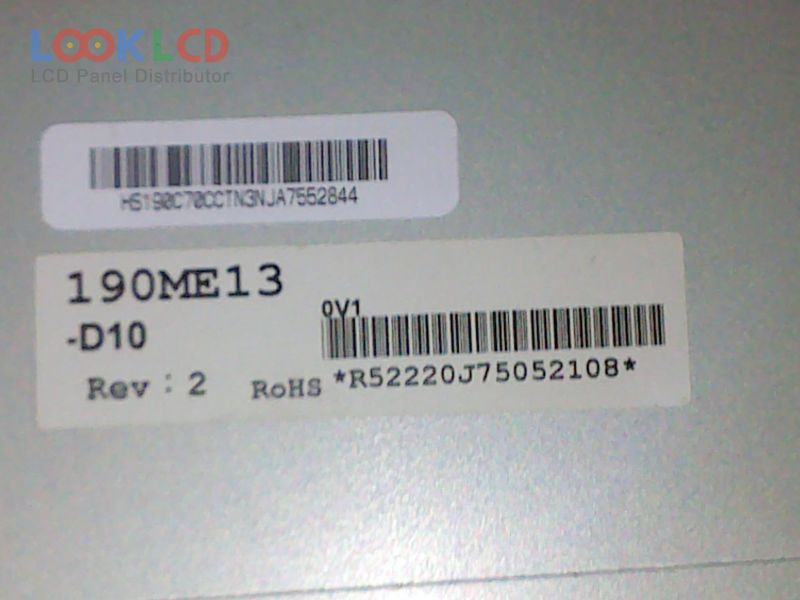

| PartZenbakia | HSD190ME13-D10 |
| Marka | HannStar |
| Tamaina | 19.0 |
| Aplikazio | DMPC |
| Ebazpena | 1280×1024 |
| Konposizioa | LCM |
| Distira | 300 |
| CR | 700:1 |
| Koloreak | 16.2M |
| Atzeko argia | CCFL |
| Interfazea | LVDS |
| panel marka | HannStar |
| panel eredua | HSD190ME13-D10 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 19.0 inch |
| ebazpena | 1280(RGB)×1024 , SXGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 376.32×301.056 mm |
| eskema | 396×324×18 mm |
| azalera | Antiglare, Hard coating (3H) |
| distira | 300 cd/m² (Typ.) |
| kontraste-erlazioa | 700:1 (Typ.) |
| bistaratzeko koloreak | 16.2M (6-bit + FRC) |
| erantzun denbora | 1.5/3.5 (Typ.)(Tr/Td) |
| ikuspegi angelua | 75/75/75/60 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 4 pcsCCFLWithout Driver |
| seinale interfazea | LVDS (2 ch, 8-bit), 30 pins |
| sarrerako tentsioa | 5.0V (Typ.) |
| aplikazio | DMPC |
