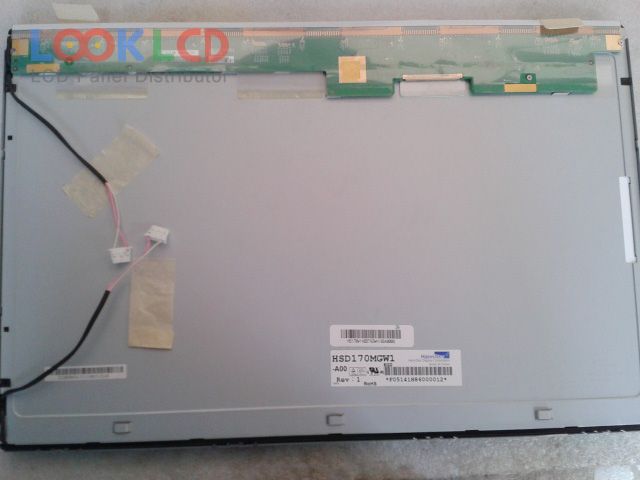

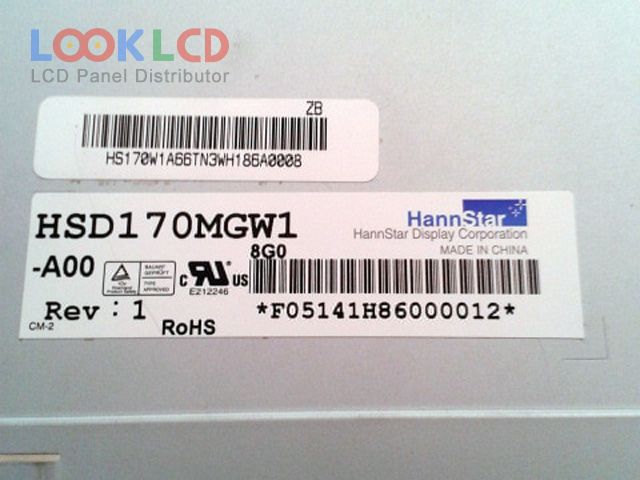

| PartZenbakia | HSD170MGW1-A00 |
| Marka | HannStar |
| Tamaina | 17.0 |
| Aplikazio | DMPC |
| Ebazpena | 1440×900 |
| Konposizioa | LCM |
| Distira | 250 |
| CR | 500:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | LVDS |
| panel marka | HannStar |
| panel eredua | HSD170MGW1-A00 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 17.0 inch |
| ebazpena | 1440(RGB)×900 , WXGA+ |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 367.2×229.5 mm |
| eskema | 389.2×254.5×11.8 mm |
| azalera | Antiglare, Hard coating (3H) |
| distira | 250 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 8 (Typ.)(Tr+Td) |
| ikuspegi angelua | 70/70/65/65 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 2 pcsCCFLWithout Driver |
| seinale interfazea | LVDS (2 ch, 6-bit), 30 pins |
| sarrerako tentsioa | 5.0V (Typ.) |
| aplikazio | DMPC |
