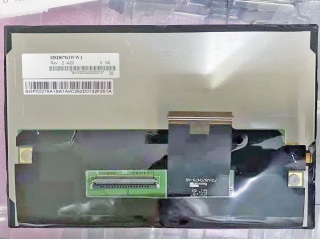

| PartZenbakia | HSD070JWW1-A20 |
| Marka | HannStar |
| Tamaina | 7.0 |
| Aplikazio | Automotive Display |
| Ebazpena | 1280×768 |
| Konposizioa | a-Si TFT-LCD , LCM |
| Distira | |
| CR | 1000:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | HannStar |
| panelaren tamaina | 7.0" |
| ebazpena | 1280(RGB)×768, WXGA, 213PPI |
| bistaratzeko eremua | 152.448(W)×91.4688(H) mm |
| distira | - |
| ikuspegi angelua | - |
| ikuspegirik onena | Symmetry |
| bistaratzeko koloreak | 16.7M |
| maiztasuna | 60Hz |
| panelaren pisua | - |
| seinale interfazea | LVDS (1 ch, 8-bit) + SPI , 60 pins FPC |
| sarrerako tentsioa | 3.3V (Typ.) |
| ingurunea | Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C |
| panel eredua | HSD070JWW1-A20 |
| panel mota | a-Si TFT-LCD , LCM |
| pixel formatua | RGB Vertical Stripe |
| bezela irekidura | - |
| kontraste-erlazioa | 1000:1 (Min.) (TM) |
| bistaratzeko modua | IPS Pro, Normally Black, Transmissive |
| erantzun denbora | 25 (Max.)(Tr+Td) |
| lanpara mota | WLED |
| pantaila taktila | - |
| aplikazio | Automotive Display |
