| PartZenbakia | COM70H7M24ULC |
| Marka | Ortustech |
| Tamaina | 7.0 |
| Aplikazio | Industrial Outdoor H |
| Ebazpena | 800×480 |
| Konposizioa | a-Si TFT-LCD, LCM |
| Distira | |
| CR | 700:13:1 |
| Koloreak | 262K/16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| marka | Ortustech |
| eredua | COM70H7M24ULC |
| diagonalaren tamaina | 7.0 inch |
| mota | a-Si TFT-LCD, LCM |
| pixel formatua | 800(RGB)×480 [WVGA] 133PPI |
| konfigurazioa | RGB Vertical Stripe |

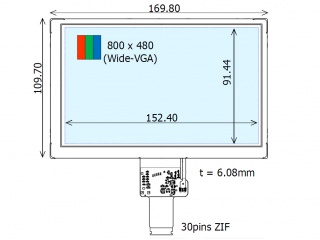

| eremu aktiboa | 152.4(H)×91.44(V) mm |
| eskema dim. | 169.8(H)×109.7(V) ×6.11(D) mm |
| bezela eremua | - |
| tratamendua | Hard coating (3H) |
| luminantzia | 790 cd/m² (Typ.) |
| kontraste-erlazioa | 700:1 (Typ.) (TM) 3:1 (Typ.) (RF) |
| ikusi norabidea | Symmetry |
| erantzun denbora | 60/40 (Max.)(Tr/Td) |
| ikuspegi angelua | 80/80/80/80 (Min.)(CR≥10) |
| funtzionamendu modua | VA, Normally Black, Transflective |
| euskarria kolorea | 262K/16.7M 50% NTSC |
| argi iturria | WLED [8S2P] , 100K hours , W/O Driver |
| pisua | 170g (Typ.) |
| entzat diseinatua | Industrial Outdoor High Brightness Automotive Display |
| fotograma-tasa | 60Hz |
| ukipen-panela | Without |
| interfaze mota | LVDS (1 ch, 6/8-bit) , 30 pins FPC |
| energia hornidura | 3.3V (Typ.) |
| ingurunea | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 6.8G (66.64 m/s²) |
