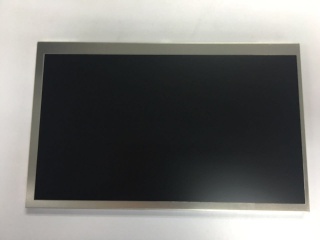

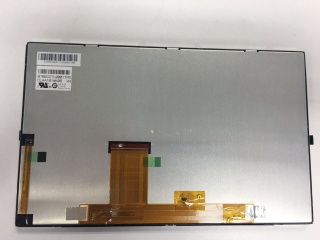

| PartZenbakia | CLAA101WK06 XN |
| Marka | CPT |
| Tamaina | 10.1 |
| Aplikazio | Automotive Display |
| Ebazpena | 1280×720 |
| Konposizioa | a-Si TFT-LCD, LCM |
| Distira | |
| CR | 900:1 |
| Koloreak | 262K/16.7M |
| Atzeko argia | 6S5P |
| Interfazea | LVDS |
| panel marka | CPT |
| panel eredua | CLAA101WK06 XN |
| panelaren tamaina | 10.1" |
| panel mota | a-Si TFT-LCD, LCM |
| ebazpena | 1280(RGB)×720, WXGA, 144PPI |
| pixel formatua | RGB Vertical Stripe |
| bistaratzeko eremua | 224.64(W)×126.36(H) mm |
| bezela irekidura | 227.64(W)×129.36(H) mm |
| eskema tamaina | 238.8(W)×148.05(H) ×8.7(D) mm |
| azalera | Antiglare (Haze 25%), Hard coating (3H) |
| distira | 600 cd/m² (Typ.) |
| kontraste-erlazioa | 900:1 (Typ.) (TM) |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10) |
| bistaratzeko modua | HFFS, Normally Black, Transmissive |
| ikuspegirik onena | Symmetry |
| erantzun denbora | 25 (Typ.)(Tr+Td) |
| bistaratzeko koloreak | 262K/16.7M 70% NTSC |
| lanpara mota | 6S5P WLED , 30K hours , Without Driver |
| maiztasuna | 60Hz |
| pantaila taktila | Without |
| panelaren pisua | 430g (Typ.) |
| aplikazio | Automotive Display |
| seinale interfazea | LVDS (1 ch, 6/8-bit) , 60 pins FPC |
| sarrerako tentsioa | 3.3/12.4/24.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| ingurunea | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 2.9G (28.4 m/s²) |
