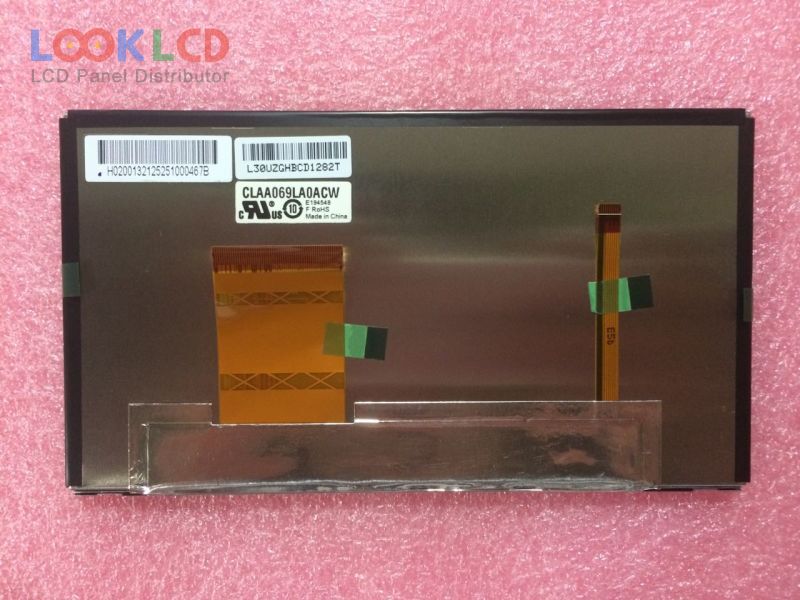

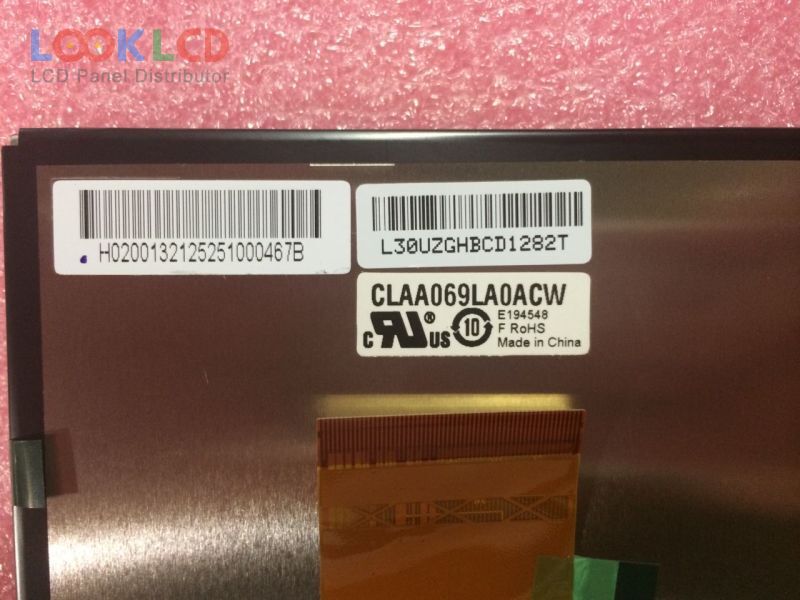

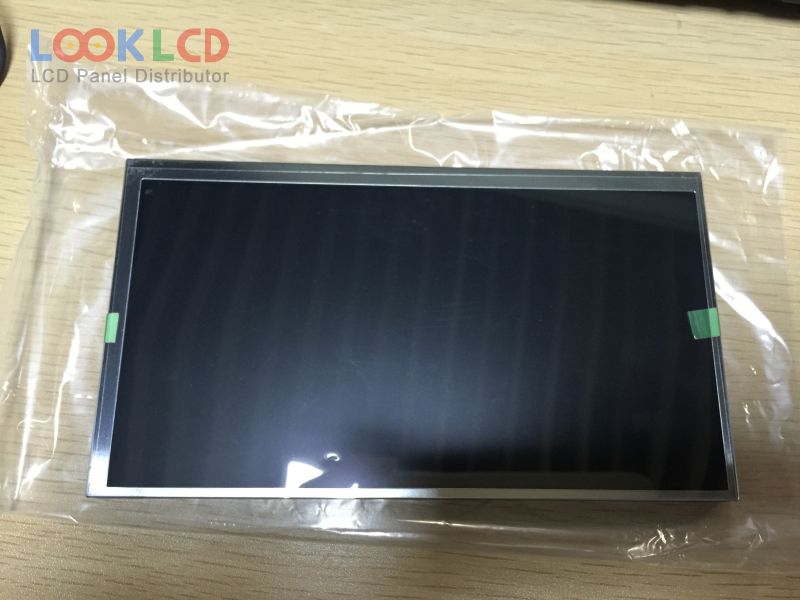

| PartZenbakia | CLAA069LA0ACW |
| Marka | CPT |
| Tamaina | 7.0 |
| Aplikazio | CNS |
| Ebazpena | 800×480 |
| Konposizioa | LCM |
| Distira | 500 |
| CR | 400:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | CPT |
| panel eredua | CLAA069LA0ACW |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 800(RGB)×480 , WVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 156.6×81.6 mm |
| eskema | 167×93.12×6.77 mm |
| azalera | Antiglare |
| distira | 500 cd/m² (Typ.) |
| kontraste-erlazioa | 400:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193170% |
| erantzun denbora | 20 (Typ.)(Tr+Td) |
| ikuspegi angelua | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 6S4PWLEDWithout Driver |
| seinale interfazea | TTL (1 ch, 6-bit), 60 pins |
| sarrerako tentsioa | 3.3/9.2/18/-6V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikazio | CNS |
