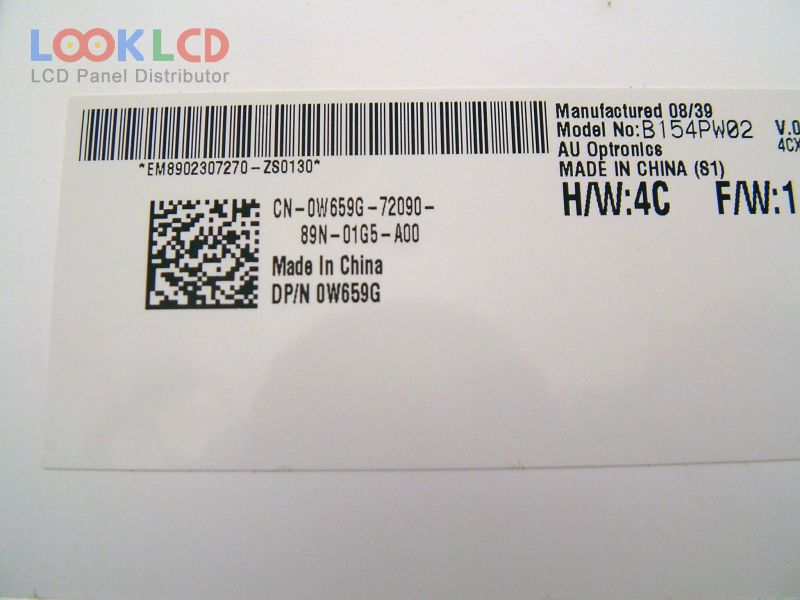

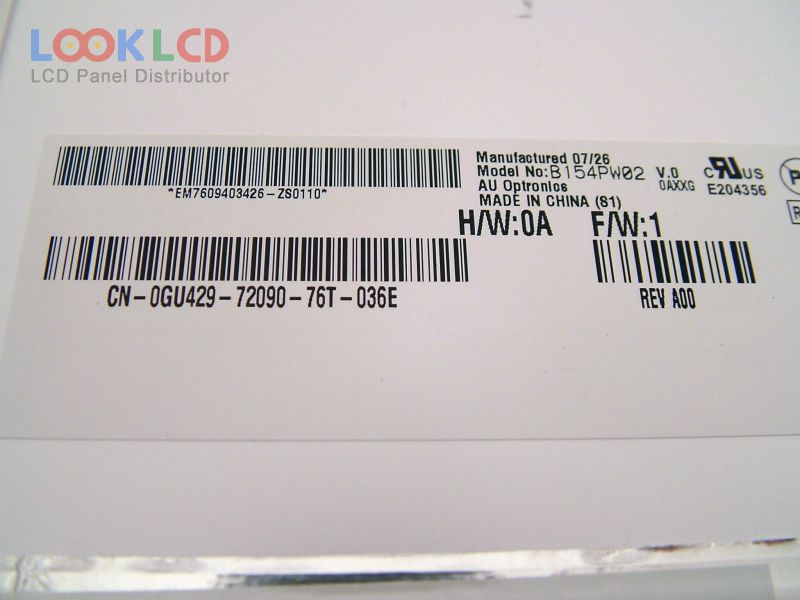

| PartZenbakia | B154PW02 V0 |
| Marka | AUO |
| Tamaina | 15.4 |
| Aplikazio | NBPC |
| Ebazpena | 1440×900 |
| Konposizioa | LCM |
| Distira | 250 |
| CR | 400:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | LVDS |
| panel marka | AUO |
| panel eredua | B154PW02 V0 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 15.4 inch |
| ebazpena | 1440(RGB)×900 , WXGA+ |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 331.56×207.225 mm |
| eskema | 344×242.5×6.1 mm |
| forma estiloa | Wedge (PCBA Bent, Depth ≥5.2mm) |
| azalera | Glare (Haze 0%), Hard coating (3H), Reflection 4.3% (Typ.) |
| distira | 250 cd/m² (Typ.) |
| kontraste-erlazioa | 400:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 4/12 (Typ.)(Tr/Td) |
| ikuspegi angelua | 60/60/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 1 pcsCCFLEmbedded (Inverter) |
| seinale interfazea | LVDS (2 ch, 6-bit), 30 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | NBPC |
