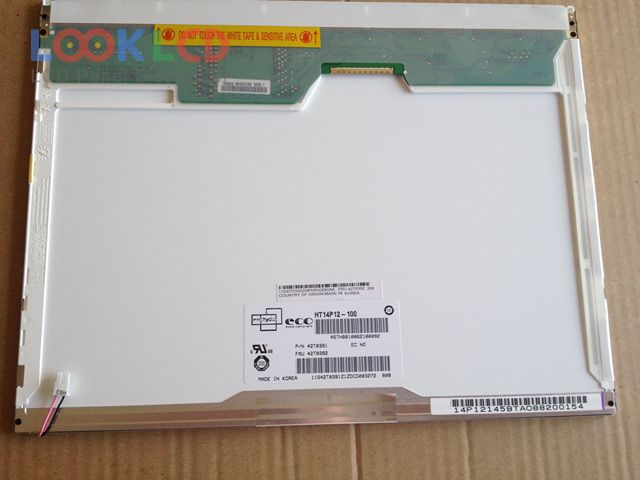

| PartZenbakia | HT14P12-100 |
| Marka | HYDIS |
| Tamaina | 14.1 |
| Aplikazio | NBPC |
| Ebazpena | 1400×1050 |
| Konposizioa | LCM |
| Distira | 150 |
| CR | 200:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | LVDS |
| panel marka | BOE HYDIS |
| panel eredua | HT14P12-100 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 14.1 inch |
| ebazpena | 1400(RGB)×1050 , SXGA+ |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 285.6×214.2 mm |
| eskema | 299×228×5.5 mm |
| forma estiloa | Wedge (PCBA Bent, Depth ≥5.2mm) |
| azalera | |
| distira | 150 cd/m² (Typ.) |
| kontraste-erlazioa | 200:1 (Min.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 25/25 (Max.)(Tr/Td) |
| ikuspegi angelua | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 1 pcsCCFLWithout Driver |
| seinale interfazea | LVDS (2 ch, 6-bit), 30 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | NBPC |
