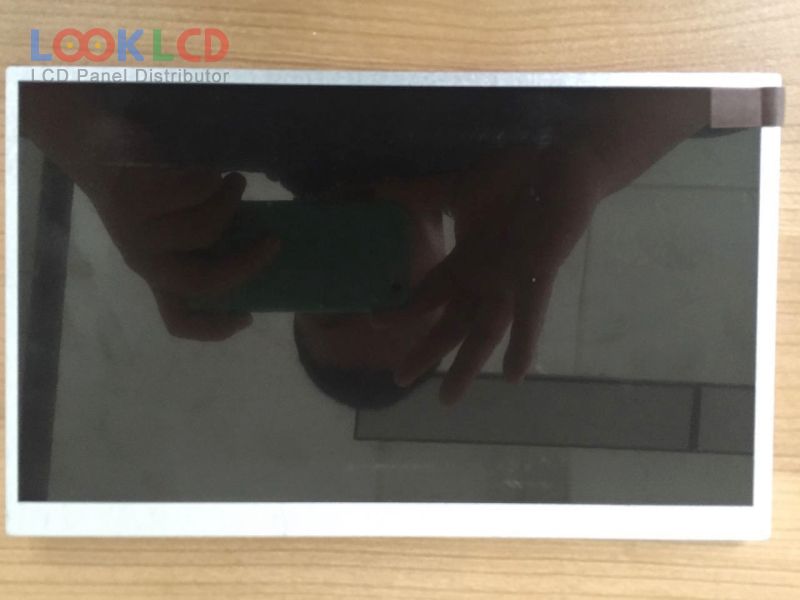

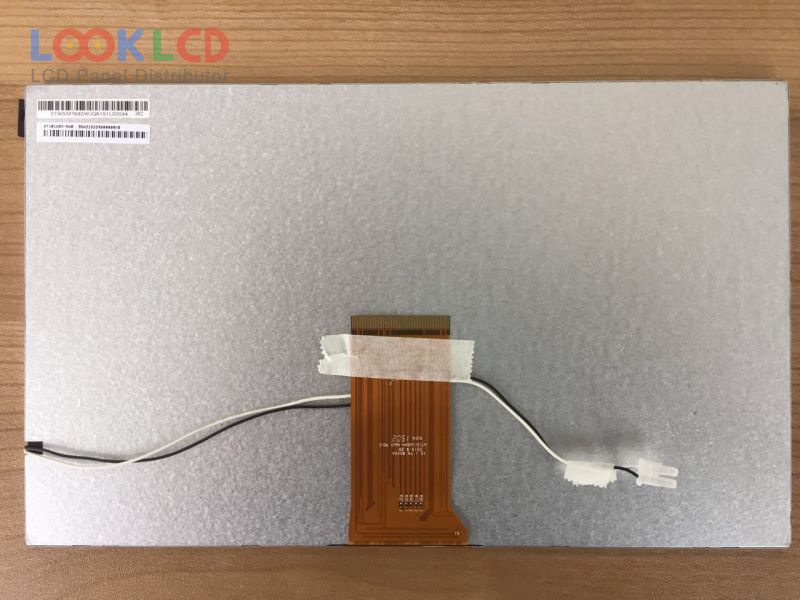

| PartZenbakia | AT101WSM-NW0-3800(3900) |
| Marka | BOE |
| Tamaina | 10.1 |
| Aplikazio | CNS |
| Ebazpena | 1024×600 |
| Konposizioa | LCM |
| Distira | 500 |
| CR | 600:1 |
| Koloreak | 262K/16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | BOE |
| panel eredua | AT101WSM-NW0-3800(3900) |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.1 inch |
| ebazpena | 1024(RGB)×600 , WSVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 222.72×125.28 mm |
| eskema | 235×143×4.8 mm |
| azalera | Antiglare (Haze 25%) |
| distira | 500 cd/m² (Typ.) |
| kontraste-erlazioa | 600:1 (Typ.) |
| bistaratzeko koloreak | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| erantzun denbora | 25 (Typ.)(Tr+Tf) |
| ikuspegi angelua | 80/80/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 3S7PWLEDWithout Driver |
| seinale interfazea | LVDS (1 ch, 6/8-bit), 60 pins |
| sarrerako tentsioa | 3.3/9.6V (Typ.)(VDD/AVDD) |
| aplikazio | CNS |
| AT101WSM-NW0-3800(3900) | BOE | 10.1 | 1024×600 |
| B101AW03 V1 | AUO | 10.1 | 1024×600 |
| B101AW06 V1 HW1A | AUO | 10.1 | 1024×600 |
| B101UAN01.7 HW2A | AUO | 10.1 | 1920×1200 |
| CLAA101WJ01 | CPT | 10.1 | 1366×768 |
| CLAA101WJ03 XG | CPT | 10.1 | 1366×768 |
| EJ101IA-02A | Innolux | 10.1 | 1280×800 |
| G101AGE-L01 | Innolux | 10.1 | 800×600 |
| HSD101PFW2-B00 | HannStar | 10.1 | 1024×600 |
| LTN101NT05-U03 | Samsung | 10.1 | 1024×600 |
| A070VW05 V1 | AUO | 7.0 | 800×480 |
| AT056TN52 V.4 | Innolux | 5.6 | 640×480 |
| CLAA061LA0BCW | CPT | 6.1 | 800×480 |
| CLAA080LB0AXV | CPT | 8.0 | 800×480 |
| CLAA090LC41CW | CPT | 9.0 | 800×480 |
| G121S1-L01 | Innolux | 12.1 | 800×600 |
| G121X1-L01 | Innolux | 12.1 | 1024×768 |
| LA061WQ1-TD05 | LG Display | 6.1 | 480×272 |
| LA070WV4-SD01 | LG Display | 7.0 | 800×480 |
| LQ065T9DR51U | SHARP | 6.5 | 400×240 |
