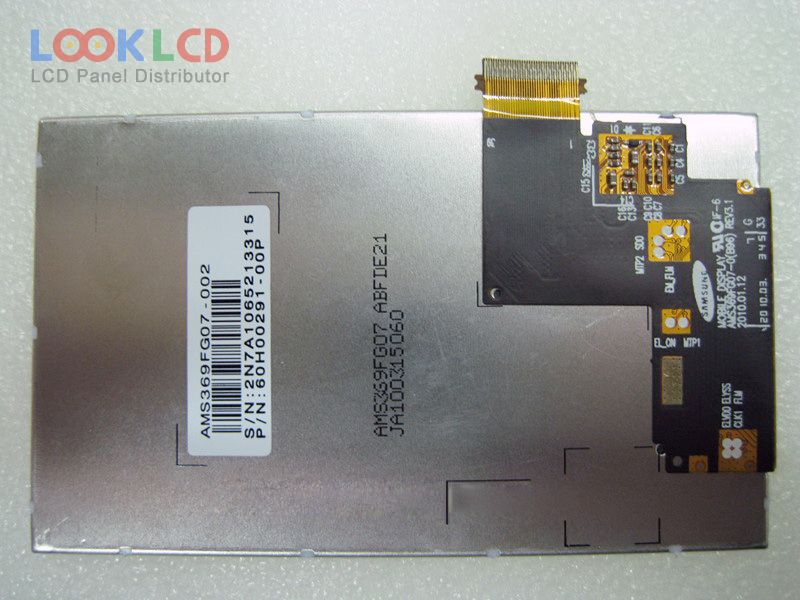

| PartZenbakia | AMS369FG07-002 |
| Marka | Samsung |
| Tamaina | 3.7 |
| Aplikazio | MPH |
| Ebazpena | 480×800 |
| Konposizioa | OLED |
| Distira | 250 |
| CR | 1000:1 |
| Koloreak | 262K |
| Atzeko argia | self |
| Interfazea | TTL |
| panel marka | SAMSUNG |
| panel eredua | AMS369FG07-002 |
| panel mota | AM-OLED , OLED |
| panelaren tamaina | 3.7 inch |
| ebazpena | 480RG(BG)×800 , WVGA |
| eremu aktiboa | 48.24×80.4 mm |
| eskema | 53.94×90 mm |
| azalera | Hard coating (2H) |
| distira | 250 cd/m² (Typ.) |
| kontraste-erlazioa | 1000 : 1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE1931106% |
| ikuspegi angelua | 80/80/80/80 (Typ.)(CR≥200)(L/R/U/D) |
| maiztasuna | 60Hz |
| gidariaren ic | Built-in TL2796 |
| seinale interfazea | Parallel RGB (1 ch, 6-bit) + SPI, 39 pins |
| sarrerako tentsioa | 2.8/2.8/4.6/-4.9V (Typ.)(IOVCC/VCI/ELVDD/ELVSS) |
| aplikazio | MPH |
