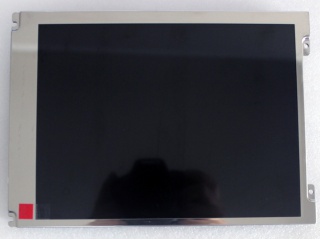

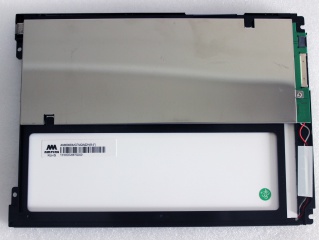

| PartZenbakia | AM-800600MGTMQW-02H |
| Marka | AMPIRE |
| Tamaina | 8.4 |
| Aplikazio | Industrial |
| Ebazpena | 800×600 |
| Konposizioa | a-Si TFT-LCD, LCM |
| Distira | |
| CR | 600:1 |
| Koloreak | 16.7M |
| Atzeko argia | 12S4P |
| Interfazea | LVDS |
| panel marka | AMPIRE |
| panel eredua | AM-800600MGTMQW-02H |
| panelaren tamaina | 8.4" |
| panel mota | a-Si TFT-LCD, LCM |
| ebazpena | 800(RGB)×600, SVGA, 119PPI |
| pixel formatua | RGB Vertical Stripe |
| bistaratzeko eremua | 170.4(W)×127.8(H) mm |
| bezela irekidura | 174.15(W)×131.2(H) mm |
| eskema tamaina | 203(W)×145.5(H) ×11.7(D) mm |
| azalera | - |
| distira | 350 cd/m² (Typ.) |
| kontraste-erlazioa | 600:1 (Typ.) (TM) |
| ikuspegi angelua | 75/75/60/70 (Typ.)(CR≥10) |
| bistaratzeko modua | TN, Normally White, Transmissive |
| ikuspegirik onena | - |
| erantzun denbora | 8 (Typ.)(Tr+Td) |
| bistaratzeko koloreak | 16.7M |
| lanpara mota | 12S4P WLED , 50K hours , With LED Driver |
| maiztasuna | 60Hz |
| pantaila taktila | Without |
| panelaren pisua | TBD |
| aplikazio | Industrial |
| seinale interfazea | LVDS (1 ch, 8-bit) , 20 pins Connector |
| sarrerako tentsioa | 3.3V (Typ.) |
| ingurunea | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
