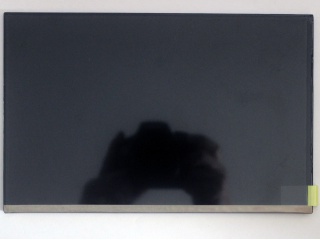

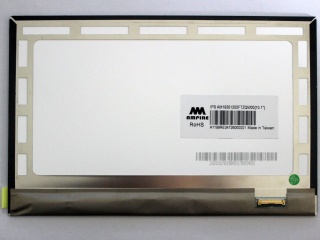

| PartZenbakia | AM-19201200FTZQW-00 |
| Marka | AMPIRE |
| Tamaina | 10.1 |
| Aplikazio | Industrial |
| Ebazpena | 1920×1200 |
| Konposizioa | a-Si TFT-LCD, LCM |
| Distira | |
| CR | 800:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | eDP |
| panel marka | AMPIRE |
| panel eredua | AM-19201200FTZQW-00 |
| panelaren tamaina | 10.1" |
| panel mota | a-Si TFT-LCD, LCM |
| ebazpena | 1920(RGB)×1200, WUXGA, 224PPI |
| pixel formatua | RGB Vertical Stripe |
| bistaratzeko eremua | 216.806(W)×135.504(H) mm |
| bezela irekidura | - |
| eskema tamaina | 227.72(W)×147.8(H) ×5.35(D) mm |
| azalera | - |
| distira | 380 cd/m² (Typ.) |
| kontraste-erlazioa | 800:1 (Typ.) (TM) |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10) |
| bistaratzeko modua | AHVA, Normally Black, Transmissive |
| ikuspegirik onena | Symmetry |
| erantzun denbora | 25 (Typ.)(Tr+Td) |
| bistaratzeko koloreak | 16.7M 50% NTSC |
| lanpara mota | WLED , 30K hours , With LED Driver |
| maiztasuna | 60Hz |
| pantaila taktila | Without |
| panelaren pisua | - |
| aplikazio | Industrial |
| seinale interfazea | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| sarrerako tentsioa | 3.3V (Typ.) |
| ingurunea | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C |
