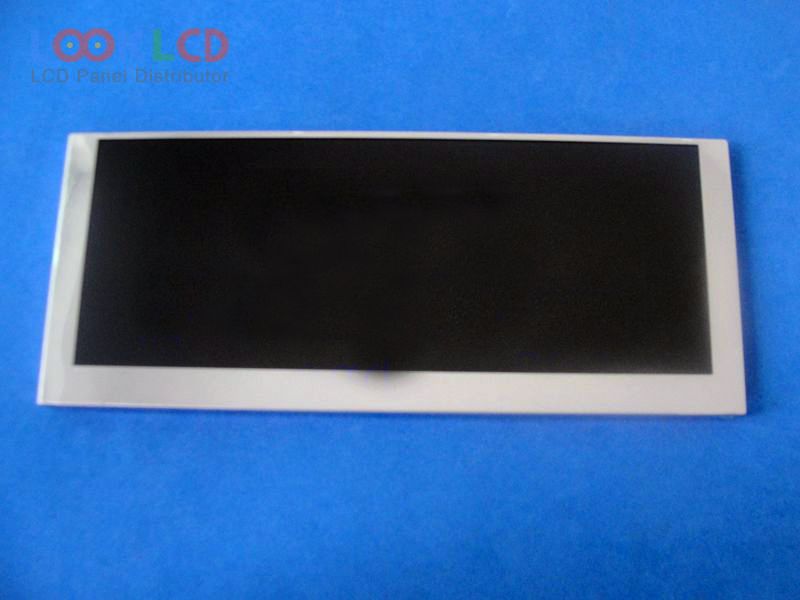

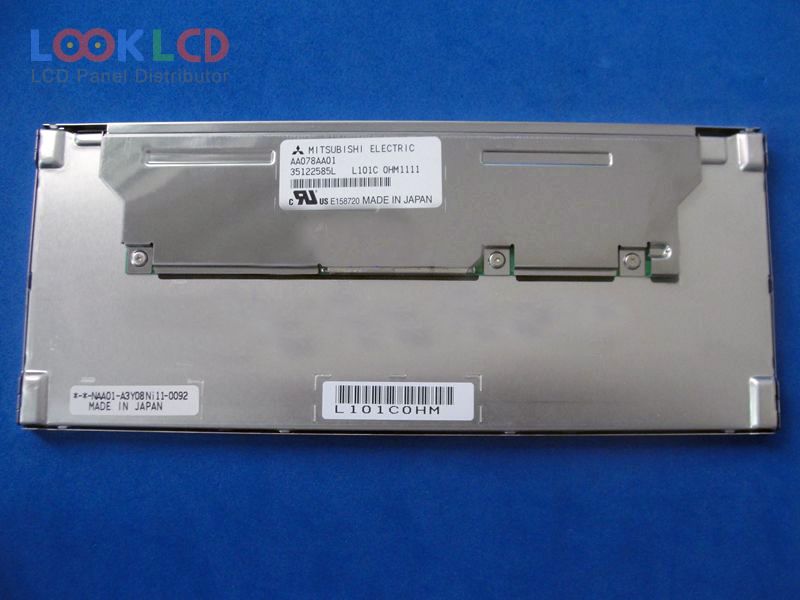

| PartZenbakia | AA078AA01 |
| Marka | Mitsubishi |
| Tamaina | 7.8 |
| Aplikazio | IA |
| Ebazpena | 800×300 |
| Konposizioa | LCM |
| Distira | 500 |
| CR | 1000:1 |
| Koloreak | 262K/16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | Mitsubishi |
| panel eredua | AA078AA01 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.8 inch(8/15 cut of 8.5") |
| ebazpena | 800(RGB)×300 |
| bistaratzeko modua | IPS, Normally Black, Transmissive |
| eremu aktiboa | 184.8×69.3 mm |
| eskema | 207×86 mm |
| azalera | Antiglare, Hard coating (3H) |
| distira | 500 cd/m² (Typ.) |
| kontraste-erlazioa | 1000:1 (Typ.) |
| bistaratzeko koloreak | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193172% |
| erantzun denbora | 12/12 (Typ.)(Tr/Td) |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | WLEDEmbedded (LED Driver) |
| seinale interfazea | LVDS (1 ch, 6/8-bit) |
| sarrerako tentsioa | 12.0V (Typ.) |
| aplikazio | IA |
